Metso Full portfolio Nordberg® C Series™ jaw crushers
Nordberg® C Series™ jaw crushers are mainly used as primary crushers in aggregates production, mining operations and recycling applications. The product family consist of models of different sizes that are engineered to deliver the maximum productivity at the lowest operating costs.
Uncompromised reliability.

Uncompromised reliability

Pinned and bolted, non-welded frame construction. Premium-quality components.

High production and reduction.

High production and reduction

Excellent material intake capability. Aggressive pitman motion.

Easy to install, operate and maintain.

Easy to install, operate and maintain

Possibility to transport in pieces. Remote monitoring and settings adjustment.

Wide range of options.

Wide range of options

Lifting tools. Safe flywheel and drive guards. Maintenance platform.

Check the video
00:00

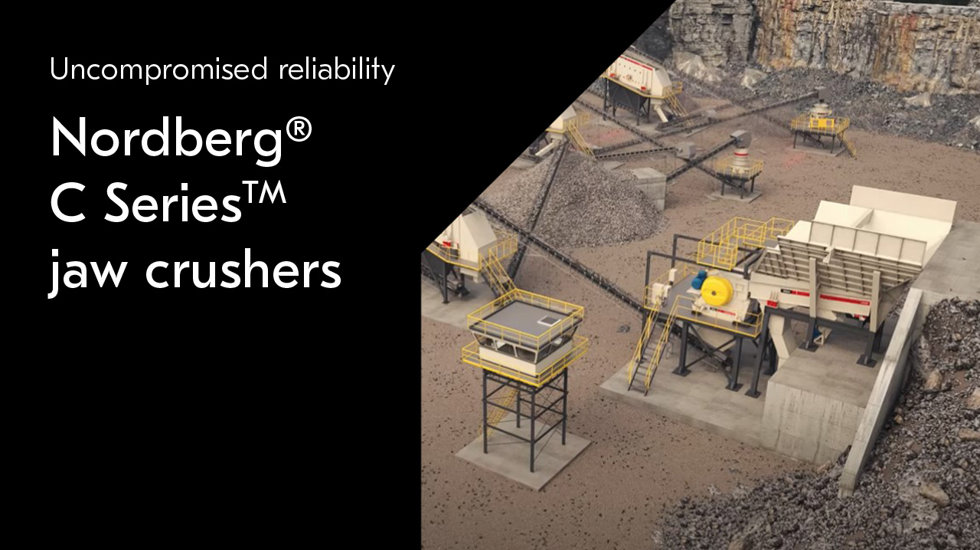

Metso Nordberg® jaw crushers - Uncompromised reliability
Nordberg® C Series™ jaw crushers have proven to be reliable and productive in thousands of installations.
Over 12,000 installations

Nordberg® C Series™ jaw crushers have proven to be reliable and productive in thousands of mining, quarrying, recycling and industrial applications with over 12,000 jaw crusher installations since 1975.

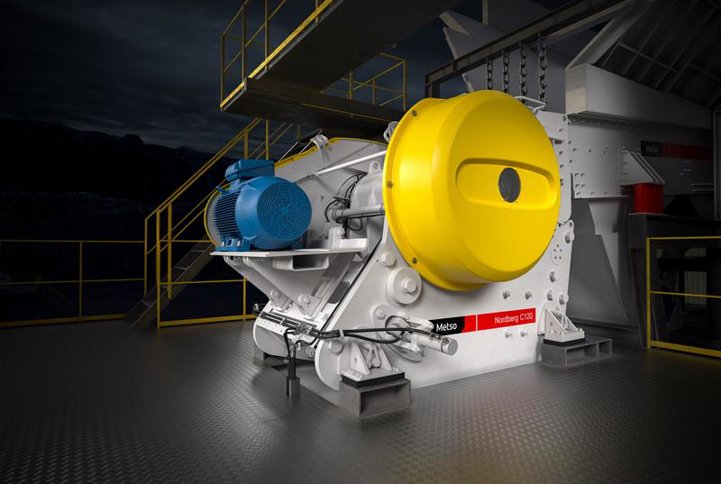

Developed to crush the hardest ores and rocks, jaw crushers also perform outstandingly with less demanding materials.

In addition to the stationary jaw crushers, many models are also available as mobile or portable versions.

Uncompromised reliability

The core of Nordberg® C Series™ jaw crusher is a pinned and bolted, non-welded frame construction that provides excellent fatigue strength. All the frame components are casted using an alloy developed in-house especially for jaw crushers.

In addition to solid casting, the crushers’ frame has a cellular, so called honeycomb structure that, like in nature, has proven to be stronger and more durable.

  • Pinned and bolted, non-welded frame construction
  • Outstanding fatigue strength
  • Excellence in casting engineering
  • Premium-quality components
The core of Nordberg® C Series™ jaw crusher is a pinned and bolted, non-welded frame construction that provides excellent fatigue strength.
Nordberg® C Series™ jaw crushers have an aggressive motion of the pitman and long stroke in the bottom of the cavity.
High production and reduction

Nordberg® C Series™ jaw crushers have an aggressive motion of the pitman and long stroke in the bottom of the cavity.

A larger feed opening increases material intake and ensures that the rocks enter the jaw crusher’s cavity without restrictions. A steeper nip angle decreases operating costs by reducing wear on jaw dies and speeds up material flow down in the cavity.

The stroke is amplified from top to bottom, leading it being longest in the bottom of the cavity. This increases the capacity as well as the reduction ratio, resulting in high production in all kinds of operations.

  • Excellent material intake capability
  • Steep cavity cross section for excellent bite
  • Aggressive pitman motion for highest capacity and reduction
Easy to install, operate, and maintain

Nordberg® C Series™ jaw crushers are designed modular to save time and installation costs. They can be installed within a few days, minimizing on-site engineering and fabrication.

The jaw crushers can be upgraded with crusher automation that enable monitoring and adjusting the settings of a feeder, crusher, and conveyor remotely. This way the crusher can be controlled from a distance making it easier and yet safer to operate.

Based on long experience and comprehensive testing at customer sites, the critical areas of jaw crushers are protected against wear. The components and parts that require renewal from time to time are engineered to be easily accessible and replaceable when needed.

Nordberg® C Series™ jaw crushers are designed modular to save time and installation costs.
Nordberg® C Series™ jaw crushers are customizable with options for any application.
Wide range of options

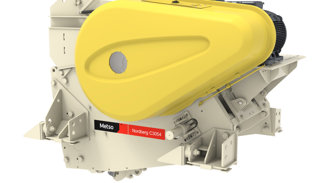

Nordberg® C Series™ jaw crushers are customizable with options for any application. Safe flywheel and drive guards protect operators from moving objects. An optional integrated motor base allows installing the crusher drive motor directly to the back of the crusher.

An optional feed chute, on the other hand, is engineered for uninterrupted material flow from the feeder into the crusher.

  • Lifting tools for jaw dies, cheek plates and toggle plate as standard
  • Optional flywheel and drive guards
  • Optional maintenance platform
  • Safe, quick and easy setting adjustment system
  • Metso IC™ crusher automation
Power, speed and weight

Nordberg® C Series™ crushers technical specifications

{{decodeHtmlEntities(field.label)}}
Feed opening and capacity

Nordberg® C Series™ crushers technical specifications

{{decodeHtmlEntities(field.label)}}
