Maintenance-free Edmeston SX® sulfuric acid pipe distributors and trough distributors eliminate all the disadvantages associated with cast iron distributors, including poor corrosion resistance and heavy weight.

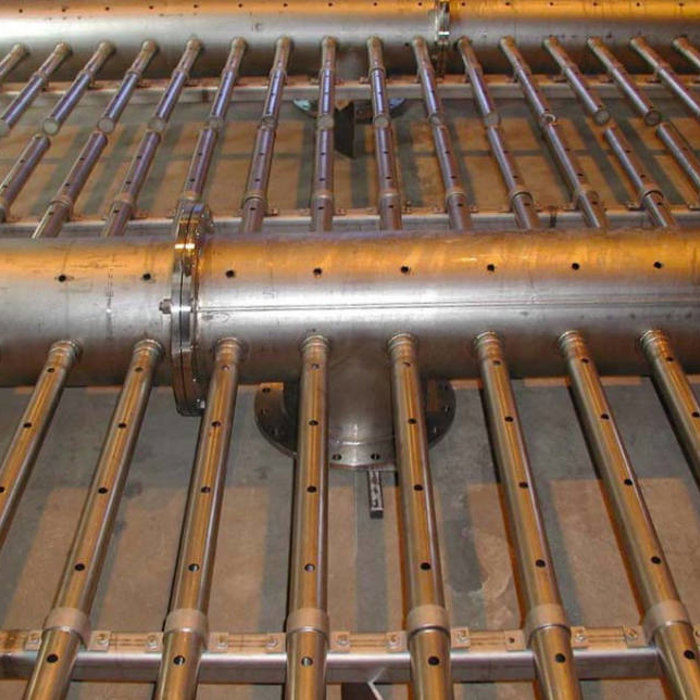

Edmeston SX® sulfuric acid pipe distributors
Edmeston SX® sulfuric acid pipe distributors are an economical solution for new installations and for replacing aged distributors, especially in absorption towers up to 5 m diameter.
The simplified and light design includes a threaded coupling allowing easy installation. The design is customizable according to requirements and user preferences, securing homogenous acid distribution.
-
The density of irrigation points can be optimized to satisfy process requirements
-
The distribution points are evenly spaced over the packing surface
-
Hole and orifice sizes will remain constant during the lifetime
-
Low corrosion rates
-
Light compared to cast iron
-
Maintenance-free eliminating downtime and spares inventory
-
Lifetime expectancy exceeds 20 years

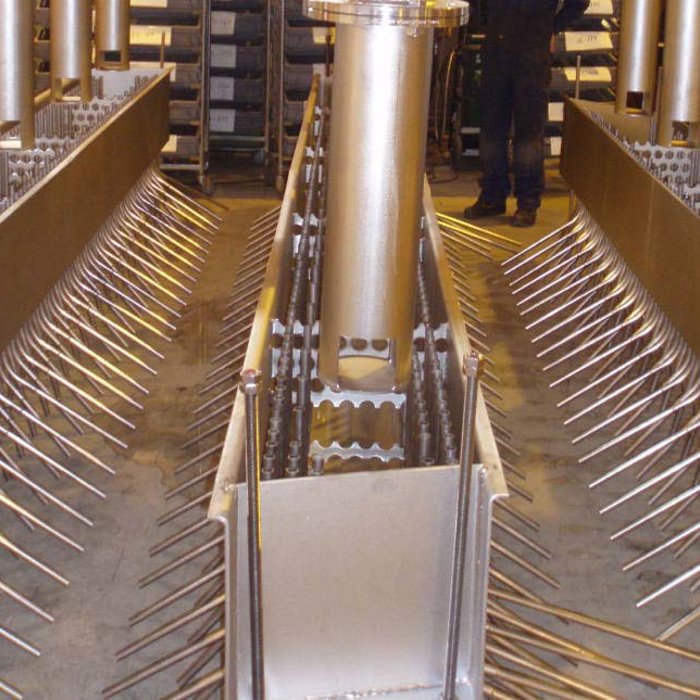

Edmeston SX® sulfuric acid trough distributors
Edmeston SX® sulfuric acid trough distributors are made for various applications, ranging from replacing cast iron distributors in old towers to the most advanced distribution systems for high-performance towers.
-
The density of irrigation points can be optimized to satisfy process requirements
-
The distribution points are evenly spaced over the packing surface
-
Slot and orifice sizes will remain constant during the lifetime
-
Acid is fed to the troughs through branch pipes directly from a header pipe without any complicated gate assemblies in the troughs
-
Very light compared to cast iron
-
Maintenance-free
-
Lifetime expectancy exceeds 20 years
