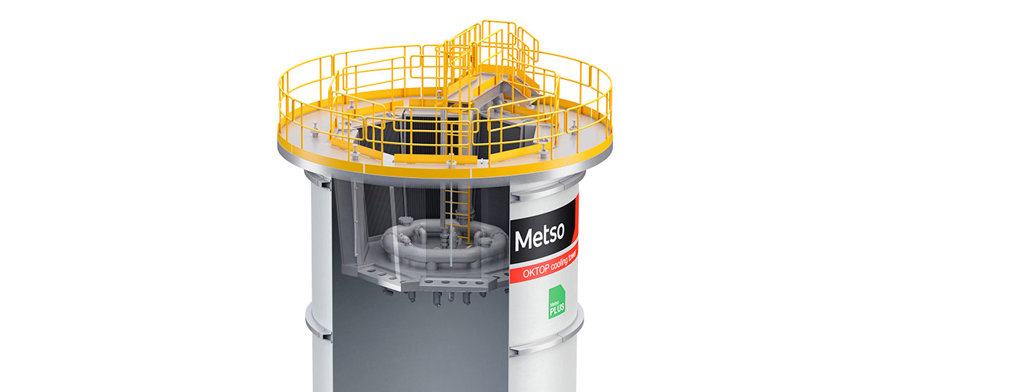

Metso Full portfolio OKTOP® Cooling tower
The cutting-edge design of Metso’s OKTOP® cooling tower provides high availability and streamlines maintenance procedures, reducing operational costs.
Efficient, sustainable cooling
Minimized emissions
Easy maintenance
Increased availability

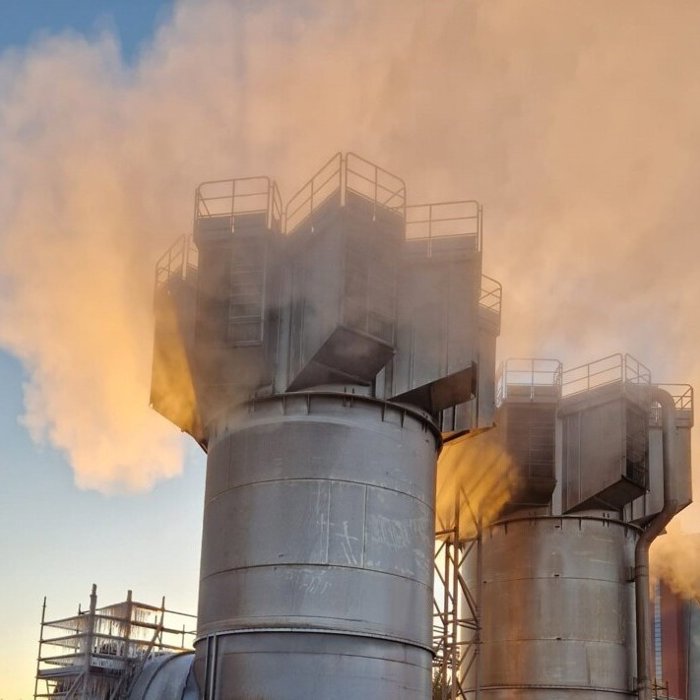

Sustainable cooling solution

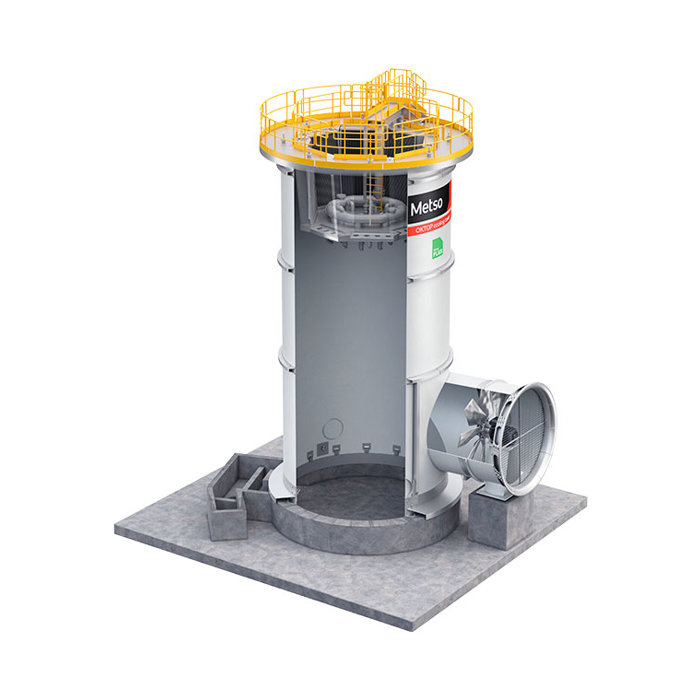

Metso OKTOP® cooling tower provides efficient and sustainable cooling, controls emissions effectively and uses innovative maintenance procedures. The heart of OKTOP® cooling towers lies in their patented horizontal outflow system. This innovative design ensures efficient cooling while minimizing emissions. Compared to conventional vertical-flow demisters, the horizontal-flow demisters significantly reduce environmental impact.

OKTOP cooling tower

Operation

Efficient cooling for versatile applications

Metso OKTOP cooling towers are designed for cooling materials with high sulfuric acid, chloride, fluoride and gypsum content. The solution is fed from the top, with cooling air flowing upwards, generated by a fan at the bottom. The cooled solution is collected and fed to the next process phase.

These towers are ideal for cooling spent electrolytes in zinc electrowinning, gypsum and chloride removal in zinc refineries, and cooling solutions in gold autoclave circuits. They offer significant savings through reduced maintenance and increased uptime.

Robust design and easy maintenance

The OKTOP cooling towers are available in three sizes: 2, 4 and 6 meters in diameter .Manufactured from fiber-reinforced plastic (FRP) and high-grade stainless steel, these cooling towers are acid-resistant and structurally strong.

OKTOP cooling towers replace conventional cooling towers, increasing feed rates to electrolysis and maintaining lower outlet temperatures. They optimize performance and set industry benchmarks. With larger air throughput per demister area, OKTOP cooling towers offer the same cooling power with less equipment, reducing investment and operating costs. Maintenance is simplified with accessible top platforms, easy demister cassette removal, and no need for scaffolding.

Metso’s unique maintenance approach allows for online demister maintenance, ensuring stable cooling performance. Nozzle maintenance is quick and easy, and the towers feature a curtain to prevent gypsum precipitation.

OKTOP® cooling tower technical specifications

Model

2000
4000
6000
Diameterm246
Heightm5913
Spraying nozzlespcs.38 or 168 or 16
Liquid capacitym³/h10-10050-400200-1,000
Material optionsFRP / StSFRP / StSFRP / StS

Metso also offers custom cooling towers for special cases, such as phosphorous acid cooling.
If you require this kind of solution, please contact us to find out more.
