EF Series™ screens

Metso EF Series™ screens need fewer parts to perform, increasing reliability and reducing the need for maintenance. Self-synchronized elliptical motion is achieved without gears and timing belts.

Safety

The EF Series screen requires less maintenance activities.

• No stopping for oil changes or oil sampling.

• No stopping for exciter changes through bearing failures.

It also reduces the time required for cleaning screen media.

Sustainable productivity

EF Series screen is a part of the Metso Plus offering. Thanks to its superior performance, the overall process sustainability is improved. Fewer cleaning cycles and more capacity results in less water and higher efficiency.

High-capacity design

Achieve high-capacity operation thanks to the combination of the banana shape design the varied stroke angle that dislodges any material from the media apertures.

Reliable design

The screen design makes maintenance easier and safer, as it has few parts and a comfortable amount of space between the decks. In addition, the Trellex® PS screening media with the Hammerless attachment system can be used to further improve safety.

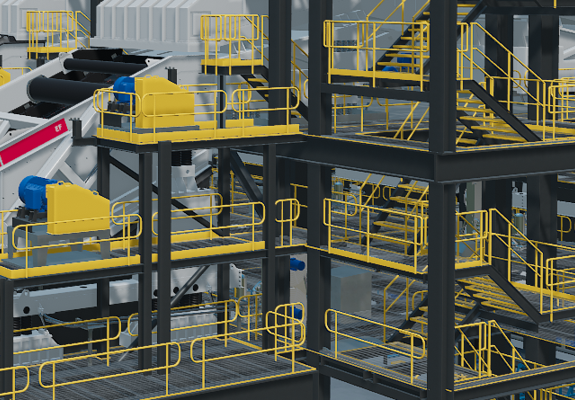

The EF screens are equipped with two counter-rotating circular motion mechanisms of different sizes. The optional electronic synchronization allows for stroke angle adjustment to optimize processing.

This reliable solution in combination with easy maintenance offers high uptime and increased safety.

Efficient even with difficult to screen sticky ores
Metso EF Series™ banana screens use an elliptical motion with varying high to medium G acceleration to eliminate blinding and plugging for ores that are difficult to screen.

Optimize screen production and efficiency while in motion with an optional electronic synchronization device that allows you to adjust both stroke angle and speed while running.

Expert support
Screening experts support in setting up and adjusting Metso EF Series™ screens for your needs. Spare parts, wear parts, and maintenance are available through our global network.
