H, S, Cp, G Diagrams Module
The H, S, Cp, G Diagrams module presents the basic thermochemical data for the given species in graphical format.
HSC Dia – H, S, Cp, G Diagrams Module
H, S, Cp, G Diagrams Module
Supporting your operations, from plant design expertise to equipment, parts and services for every stage of your process.
Are you looking to increase production, reduce risks, lower operating costs and enhance environmental performance? Then you are in the right place.
From the design and supply of products for a greenfield plant, to the addition of a single machine for an existing production line, we are here to help.
Rely on OEM experts because not all parts are created equal. Spare and wear parts built to perform.
Helping you get the most out of your equipment and processes.
Eight different diagram types can be drawn as a function of temperature:
The basic steps for drawing a diagram for all types is almost the same, except for a small difference with the DG diagrams.

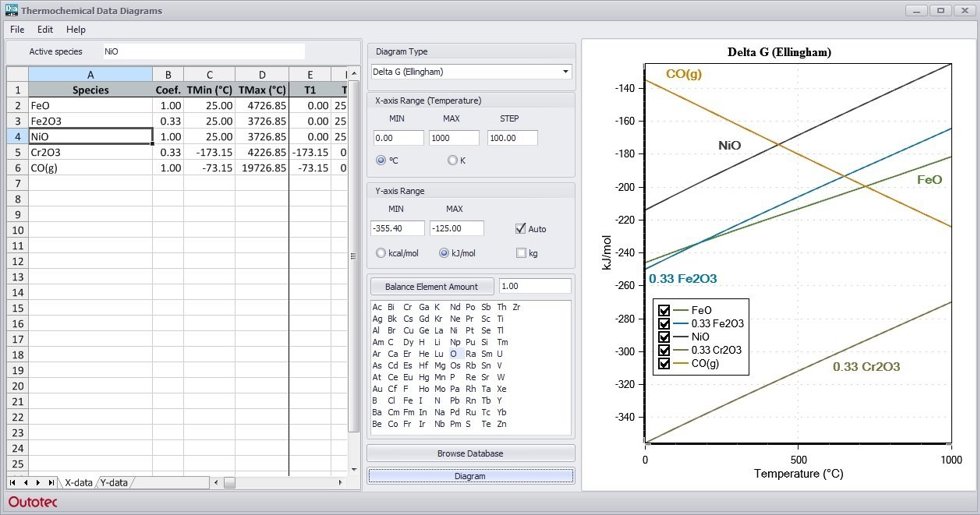

The DG diagrams (Ellingham) show the relative stability of various oxides, sulfates, chlorides etc. These diagrams must contain only the same type of substances, such as oxides, sulfides, chlorides, etc. The species amounts must be balanced to contain exactly the same amount of the main element, such as oxygen in oxides and sulfur in sulfides.
