Lokotrack® LT Series mobile crushers are often referred to as ‘mobile crushing plants’. They are track-mounted crushing machines which, thanks to their mobility, can maximise productivity and reduce operating costs – while increasing safety and reducing environmental impact.
The basic components of mobile crushers are almost the same as for stationary ones, but with the added advantage of complete mobility, even up slopes as steep as 1:10 incline.
Lokotrack® crushing equipment is often utilized in aggregates production in quarries and construction sites, recycling applications, as well as in mining operations.
Many Lokotrack® models have the crushing unit, conveyors and screen in the same track-mounted frame. For models that don't have the screen as default, it can be integrated on request.
Since Lokotrack® combines crushing, conveying and screening tasks, one machine can function as a complete production plant.
Two or multiple Lokotrack® units can also be layed out one after another. In these cases they form a multi-stage production chain, so called ‘Lokotrack® train’.
Lokotrack® jaw crushers
Popular Lokotrack® jaw crushers are utilized as primary crushers that reduce the material to smaller sized for further processing.
Lokotrack® cone crushers
Traditionally used as secondary, tertiary, and quaternary crushers. However, if the grain size of the processed material is small enough by nature, then they can also operate at the first stage of the crushing process.
Lokotrack® impact crushers
Lokotrack® HSI crushers have a horizontal impact crushing unit and they are used as primary, secondary, or tertiary crushers. Lokotrack® VSI crushers are equipped with vertical shaft impact crushing unit, and they are efficient in the last stage of the crushing process, producing precisely shaped cubical end products.
Lokotrack® e-Power mobile jaw and cone crushers can powered with diesel or electricity. The mobile crusher is plugged to the grid for quiet, emission-free and economical crushing in the cities, and powered by a modern low-emission and low noise diesel engine where the grid is not available.
Operating with hard rock aggregates and recycling materials is about raw force and demanding conditions. It’s also about producing high-quality products – on time, at the right price. To meet these targets day in and day out, the new Lokotrack EC range provides industry-leading reliability and performance. With a robust design and fit-to purpose digital tools, operating and maintaining the units is made easier than ever. The first mobile crushers Lokotrack LT400J and LT350C are out now!
Model | Lokotrack® LT96™ | Lokotrack® LT106™ | Lokotrack® LT116™ | Lokotrack® LT120™ | Lokotrack® LT120E™ | Lokotrack® LT130E™ |
---|---|---|---|---|---|---|
Transport length | 12 400 mm (40’ 8”) | 15 200 mm (49’ 9”) | 15 600 mm (51’ 2”) | 16 650 / 17 400* mm (54’ 8” / 57’ 1”*) | 16 650 / 17 400* mm (54’ 8” / 57’ 1”*) | 21 500 mm (70’ 6”) |
Transport width | 2 500 mm (8’ 2”) | 2 800 mm (9’ 2”) | 3 000 mm (9’ 10”) | 3 000 mm (9’ 10”) | 3 000 mm (9’ 10”) | 3 500 mm (11’ 6”) |
Transport height | 3 100 mm (10’ 2”) | 3 400 mm (11’ 2”) | 3 600 mm (11’ 10”) | 3 900 mm (12’ 10”) | 3 900 mm (12’ 10”) | 3 900 mm (12’ 8”) |
Transport weight | 30 500 kg (67 241 lbs) | 42 000 kg (92 600 lbs) | 48 100 kg (106 042 lbs) | 62 000 kg (136 687 lbs) | 65 000 kg (143 300 lbs) | 103 000 kg (227 000 lbs) |
Crusher unit | Nordberg® C96™ | Nordberg® C106™ | Nordberg® C116™ | Nordberg® C120™ | Nordberg® C120™ | Nordberg® C130™ |
Nominal feed opening | 930 x 600mm (3’ x 1’11½” ) | 1 060 x 700 mm (42” x 28”) | 1 150 x 760 mm (45” x 30”) | 1 200 x 870 mm (47” x 34”) | 1 200 x 870 mm (47” x 34”) | 1 300 x 1 000 mm (51” x 39”) |
Hopper volume | 4 / 6* m³ (5.2 yd³ / 7.8* yd³) | 6 / 9* m³ (8 / 12* yd³) | 6 / 9* m³ (8 / 12* yd³) | 7 / 12* m³ (9 / 16* yd³) | 7 / 12* m³ (9 / 16* yd³) | 11 / 23* m³ (15 / 30* yd³) |
Loading height | 3 600 mm (11’ 10”) | 3 900 mm (12’ 10”) | 4 000 mm (13’ 1”) | 4 430 mm (14’ 6”) | 4 430 mm (14’ 6”) | 5 850 mm (19’ 2”) |
Loading width | 2 500 / 3 400* mm (8’ 2½” / 11’ 2”*) | 2 630 / 3 600* mm (8’ 8” / 11’ 10”*) | 2 610 / 3 600* mm (8’ 7” / 11’ 10”*) | 2 600 / 4 100* mm (8’ 7” / 13’ 6”*) | 2 600 / 4 100* mm (8’ 7” / 13’ 6”*) | 3 150 / 5 000* mm (10’ 4” / 16’ 5”*) |
Main conveyor (discharge height) | 2 600 / 3 600* mm (8’ 6½” / 11’ 9½”*) | 2 800 / 3 900* mm (9’ 2” / 12’ 10”*) | 2 800 / 3 900* mm (9’ 2” / 12’ 10”*) | 3 400 / 4 700* mm (11’ 2” / 15’ 5”*) | 3 400 / 4 700* mm (11’ 2” / 15’ 5”*) | 3 000 - 4 550 mm (10’ 4” - 14’ 11”) |
Side conveyor (discharge height) | 1 500 mm (4’ 11”) | 1 630 mm (5’ 4”) | 1 930 mm (6’ 4”) | 2 850 mm (9’ 5”) | 2 850 mm (9’ 5”) | 2 900 mm (9’ 6”) |
Screen product conveyor (discharge height) | 2 300 mm (7’ 7”) | 2 600 mm (8’ 7”) | 2 710 mm (8’ 11”) | |||
Screen side conveyor (discharge height) | 1 800 mm (6’) | 2 650 mm (8’ 8”) | 2 775 mm (9’1”) | |||
Engine manufacturer | CAT® | CAT® | CAT® | CAT® | CAT® | CAT® |
Power | 151/168 kW (202/225 hp) | 224 kW (300 hp) | 310 kW (415 hp) | 310 kW (415 hp) | 310 kW / 420 kVA (415 hp) | 403 kW / 500 kVA (545 hp) |
Fuel tank capacity | 500 l (132 gal) | 630 l (166 gal) | 600 l (159 gal) | 630 l (166 gal) | 630 l (166 gal) | 1 200 l (317 gal) |
Process control system | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ |
Screen model | TK11-20-S* | TK11-30-S* | TK13-30-S* | |||
Screen size | 2 000 / 1 100 mm (6’ 7” / 3’ 7”) | 3 000 / 1 100 mm (9’ 10” / 3’ 7”) | 3 000 / 1 300 mm (9’ 10” / 4’ 3”) | |||
*as an option |
Model | Lokotrack® LT96™ | Lokotrack® LT106™ | Lokotrack® LT116™ | Lokotrack® LT120™ | Lokotrack® LT120E™ | Lokotrack® LT130E™ |
---|---|---|---|---|---|---|
Transport length | 12 400 mm (40’ 8”) | 15 200 mm (49’ 9”) | 15 600 mm (51’ 2”) | 16 650 / 17 400* mm (54’ 8” / 57’ 1”*) | 16 650 / 17 400* mm (54’ 8” / 57’ 1”*) | 21 500 mm (70’ 6”) |
Transport width | 2 500 mm (8’ 2”) | 2 800 mm (9’ 2”) | 3 000 mm (9’ 10”) | 3 000 mm (9’ 10”) | 3 000 mm (9’ 10”) | 3 500 mm (11’ 6”) |
Transport height | 3 100 mm (10’ 2”) | 3 400 mm (11’ 2”) | 3 600 mm (11’ 10”) | 3 900 mm (12’ 10”) | 3 900 mm (12’ 10”) | 3 900 mm (12’ 8”) |
Transport weight | 30 500 kg (67 241 lbs) | 42 000 kg (92 600 lbs) | 48 100 kg (106 042 lbs) | 62 000 kg (136 687 lbs) | 65 000 kg (143 300 lbs) | 103 000 kg (227 000 lbs) |
Crusher unit | Nordberg® C96™ | Nordberg® C106™ | Nordberg® C116™ | Nordberg® C120™ | Nordberg® C120™ | Nordberg® C130™ |
Nominal feed opening | 930 x 600mm (3’ x 1’11½” ) | 1 060 x 700 mm (42” x 28”) | 1 150 x 760 mm (45” x 30”) | 1 200 x 870 mm (47” x 34”) | 1 200 x 870 mm (47” x 34”) | 1 300 x 1 000 mm (51” x 39”) |
Hopper volume | 4 / 6* m³ (5.2 yd³ / 7.8* yd³) | 6 / 9* m³ (8 / 12* yd³) | 6 / 9* m³ (8 / 12* yd³) | 7 / 12* m³ (9 / 16* yd³) | 7 / 12* m³ (9 / 16* yd³) | 11 / 23* m³ (15 / 30* yd³) |
Loading height | 3 600 mm (11’ 10”) | 3 900 mm (12’ 10”) | 4 000 mm (13’ 1”) | 4 430 mm (14’ 6”) | 4 430 mm (14’ 6”) | 5 850 mm (19’ 2”) |
Loading width | 2 500 / 3 400* mm (8’ 2½” / 11’ 2”*) | 2 630 / 3 600* mm (8’ 8” / 11’ 10”*) | 2 610 / 3 600* mm (8’ 7” / 11’ 10”*) | 2 600 / 4 100* mm (8’ 7” / 13’ 6”*) | 2 600 / 4 100* mm (8’ 7” / 13’ 6”*) | 3 150 / 5 000* mm (10’ 4” / 16’ 5”*) |
Main conveyor (discharge height) | 2 600 / 3 600* mm (8’ 6½” / 11’ 9½”*) | 2 800 / 3 900* mm (9’ 2” / 12’ 10”*) | 2 800 / 3 900* mm (9’ 2” / 12’ 10”*) | 3 400 / 4 700* mm (11’ 2” / 15’ 5”*) | 3 400 / 4 700* mm (11’ 2” / 15’ 5”*) | 3 000 - 4 550 mm (10’ 4” - 14’ 11”) |
Side conveyor (discharge height) | 1 500 mm (4’ 11”) | 1 630 mm (5’ 4”) | 1 930 mm (6’ 4”) | 2 850 mm (9’ 5”) | 2 850 mm (9’ 5”) | 2 900 mm (9’ 6”) |
Screen product conveyor (discharge height) | 2 300 mm (7’ 7”) | 2 600 mm (8’ 7”) | 2 710 mm (8’ 11”) | |||
Screen side conveyor (discharge height) | 1 800 mm (6’) | 2 650 mm (8’ 8”) | 2 775 mm (9’1”) | |||
Engine manufacturer | CAT® | CAT® | CAT® | CAT® | CAT® | CAT® |
Power | 151/168 kW (202/225 hp) | 224 kW (300 hp) | 310 kW (415 hp) | 310 kW (415 hp) | 310 kW / 420 kVA (415 hp) | 403 kW / 500 kVA (545 hp) |
Fuel tank capacity | 500 l (132 gal) | 630 l (166 gal) | 600 l (159 gal) | 630 l (166 gal) | 630 l (166 gal) | 1 200 l (317 gal) |
Process control system | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ |
Screen model | TK11-20-S* | TK11-30-S* | TK13-30-S* | |||
Screen size | 2 000 / 1 100 mm (6’ 7” / 3’ 7”) | 3 000 / 1 100 mm (9’ 10” / 3’ 7”) | 3 000 / 1 300 mm (9’ 10” / 4’ 3”) | |||
*as an option |
Model | Lokotrack® LT96™ | Lokotrack® LT106™ | Lokotrack® LT116™ | Lokotrack® LT120™ | Lokotrack® LT120E™ | Lokotrack® LT130E™ |
---|---|---|---|---|---|---|
Metrics remote monitoring | ● | ● | ● | ● | ● | ● |
ICr remote control | ● | ● | ● | ● | ● | ● |
Hopper extensions | ● | ● | ● | ● | ● | ● |
Feeder rubber bottom | ● | ● | ● | ● | ● | |
Rubber lining for hopper | ● | ● | ● | ● | ● | |
Side conveyor | ● | ● | ● | ● | ● | ● |
Active Setting Control™ | ● | ● | ● | |||
Material level contoller | ● | ● | ● | ● | ● | ● |
Belt protection plate | ● | ● | ● | ● | ● | ● |
Automatic lubrication unit | ● | ● | ● | ● | ● | ● |
Long main conveyor | ● | ● | ● | ● | ● | |
Magnetic separator | ● | ● | ● | ● | ● | ● |
Remote radio control | ● | ● | ● | ● | ● | ● |
Dust encapsulation | ● | ● | ● | ● | ● | ● |
High pressure water spraying | ● | ● | ● | ● | ● | ● |
Pre-heater for engine | ● | ● | ● | ● | ● | ● |
Hot / cold climate kit | ● | ● | ● | ● | ● | ● |
Extreme cold climate kit | ● | ● | ● | ● | ● | ● |
Hydraulic boom and hammer | ● | ● | ● | ● | ● | |
Additional platform | ● | ● | ● | |||
Hydraulic generator | ● | ● | ● | ● | ● | |
Fuel filling pump | ● | ● | ● | ● | ● | ● |
Hydraulic power take off | ● | ● | ● | ● | ||
Interlocking cable | ● | ● | ● | ● | ● | ● |

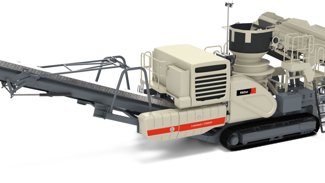

Models | Lokotrack® LT200HP™ | Lokotrack® LT200HPS™ | Lokotrack® LT200HPX™ | Lokotrack® LT220GP™ | Lokotrack® LT300HP™ | Lokotrack® LT300GP™ | Lokotrack® LT220D™ | Lokotrack® LT330D™ |
---|---|---|---|---|---|---|---|---|
Transport length | 16 800 mm (51’ 8”) | 19 000 mm (62’ 3”) | 19 000 mm (62') | 19 000 mm (62') | 17 300 mm (56’ 9”) | 17 300 mm (56’ 9”) | 16 500 mm (54’) | 20 500 mm (67’ 4") |
Transport width | 3 000 mm (9’ 10”) | 3 100 mm (10’ 2”) | 3 000 mm (9' 10) | 3 000 mm (9' 10) | 3 500 mm (11’ 5”) | 3 500 mm (11’ 5”) | 3 000 mm (9’ 10”) | 3 500 mm (11’ 5”) |
Transport height | 3 400 mm (11’ 2”) | 3 600 mm (11’ 10”) | 3 500 mm (11' 6") | 3 500 mm (11' 6") | 3 800 mm (12’ 5”) | 3 800 mm (12’ 5”) | 3 500 mm (11’ 6”) | 3 900 mm (12’ 10”) |
Transport weight | 32 000 kg (70 500 lbs) | 38 000 kg (84 000 lbs) | 42 000 kg (93 000 lbs) | 38 500 kg (85 000 lbs) | 45 400 kg (100 089 lbs) | 45 900 kg (101 192 lbs) | 46 600 kg (102 735 lbs) | 70 000 kg (154 323 lbs) |
Crusher unit | Nordberg® HP200™ | Nordberg® HP200™ | Nordberg® HP200™ | Nordberg® GP220™ | Nordberg® HP300™ | Nordberg® GP300S™ / GP330™ | Nordberg® GP220D™ / HP200™ | Nordberg® GP330™ |
Nominal feed opening | 185 mm (7.28”) | 185 mm (7.28”) | 185 mm (7.3”) | 210 mm (8,3") | 230 mm (9 1⁄16”) | 380 / 225 mm (15” / 8 7⁄8”) | 210 / 185 mm (8 1⁄4” / 7 1⁄4”) | 238 mm (9.37” ) |
Hopper volume | 5 m³ (6.6 yd³) | 5 m³ (6.6 yd³) | 3.5 m³ (4.5 yd³) | 9 m³ (11.8 yd³) | 5 / 8* m³ (6.6 / 10.5* yd³) | 5 / 8* m³ (6.6 / 10.5* yd³) | ||
Loading height | 2 700 mm (8’ 9”) | 2 715 mm (8’ 10”) | 3 500 mm (11' 6") | 2 750 mm (9' 0") | 2 900 / 3 600* mm (9’ 6” / 11’ 10”*) | 2 900 / 3 600* mm (9’ 6” / 11’ 10”*) | 2 850 mm (9’ 4”) | 3 880 mm (12’ 9”) |
Loading width | 2 440 mm (8’) | 2 500 mm (8’ 3”) | 1 850 mm (6' 1") | 2 650 mm (8' 8") | 2 800 / 3 900* mm (9’ 2” / 12’ 10”*) | 2 800 / 3 900* mm (9’ 2” / 12’ 10”*) | 1 750 mm (5’ 9”) | 2 790 mm (9’ 2”) |
Main conveyor (discharge height) | 2 900 mm (9’ 6”) | 2 600 mm (8’ 7”) | 2900 mm / 3900 mm (9' 6" / 12' 10") | 2 900 mm / 3 900 mm (9' 6" / 12' 10") | 2 700 / 3 700* mm (8’ 10” / 12’ 2” *) | 2 700 / 3 700* mm (8’ 10” / 12’ 2” *) | ||
Side conveyor (discharge height) | 3,300 mm (10' 10") | 3 300 mm (10' 10") | 2 000 mm (6’ 7”)* | 2 000 mm (6’ 7”)* | ||||
Screen product conveyor (discharge height) | 2 740 mm (9’) | 4 350 mm (14’ 4”) | 5 300 mm (17’ 5”) | |||||
Screen side conveyor(s) (discharge height) | 2 550 mm (8’ 5”) | 3 700 mm (12’ 2”) | 3 600 mm (11’ 10”)* | |||||
Engine manufacturer | CAT® | CAT® | CAT® | CAT® | CAT® | CAT® | CAT® | CAT® |
Power | 310 kW (415 hp) | 310 kW (415 hp) | 310 kW (416 hp) | 310 kW (416 hp) | 403 kW (540 hp) | 403 kW (540 hp) | 310 kW (415 hp) | 470 kW / 700 kVA (630 hp) |
Fuel tank capacity | 630 l (166 gal) | 600 l (159 gal) | 790 l (209 gal) | 790 l (209 gal) | 1 200 l (317 gal) | 1 200 l (317 gal) | 900 l (238 gal) | 1 150 l (304 gal) |
Process control system | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ |
Screen model | TK13-30S / TK15-30-2S | Pre-screen TK12-26-2V | TK13-30S* | TK13-30S* | ST4.8 | DS20-55 | ||
Screen length | 3 000 mm (9’ 10”) | 1 800 mm (5' 11") | 1 800 mm (5' 11") | 3 000 mm (9’ 10”) | 3 000 mm (9’ 10”) | 5 480 mm (18’) | 5 500 mm (18’) | |
Screen width | 1 300 / 1 500* mm (4’ 3” / 4’ 11”*) | 1 200 mm (3' 11") | 1 200 mm (3' 11") | 1 300 mm (4’ 3”) | 1 300 mm (4’ 3”) | 1 524 mm (5’) | 2 000 mm (6’ 7”) | |
*as an option |
Models | Lokotrack® LT200HP™ | Lokotrack® LT200HPS™ | Lokotrack® LT200HPX™ | Lokotrack® LT220GP™ | Lokotrack® LT300HP™ | Lokotrack® LT300GP™ | Lokotrack® LT220D™ | Lokotrack® LT330D™ |
---|---|---|---|---|---|---|---|---|
Transport length | 16 800 mm (51’ 8”) | 19 000 mm (62’ 3”) | 19 000 mm (62') | 19 000 mm (62') | 17 300 mm (56’ 9”) | 17 300 mm (56’ 9”) | 16 500 mm (54’) | 20 500 mm (67’ 4") |
Transport width | 3 000 mm (9’ 10”) | 3 100 mm (10’ 2”) | 3 000 mm (9' 10) | 3 000 mm (9' 10) | 3 500 mm (11’ 5”) | 3 500 mm (11’ 5”) | 3 000 mm (9’ 10”) | 3 500 mm (11’ 5”) |
Transport height | 3 400 mm (11’ 2”) | 3 600 mm (11’ 10”) | 3 500 mm (11' 6") | 3 500 mm (11' 6") | 3 800 mm (12’ 5”) | 3 800 mm (12’ 5”) | 3 500 mm (11’ 6”) | 3 900 mm (12’ 10”) |
Transport weight | 32 000 kg (70 500 lbs) | 38 000 kg (84 000 lbs) | 42 000 kg (93 000 lbs) | 38 500 kg (85 000 lbs) | 45 400 kg (100 089 lbs) | 45 900 kg (101 192 lbs) | 46 600 kg (102 735 lbs) | 70 000 kg (154 323 lbs) |
Crusher unit | Nordberg® HP200™ | Nordberg® HP200™ | Nordberg® HP200™ | Nordberg® GP220™ | Nordberg® HP300™ | Nordberg® GP300S™ / GP330™ | Nordberg® GP220D™ / HP200™ | Nordberg® GP330™ |
Nominal feed opening | 185 mm (7.28”) | 185 mm (7.28”) | 185 mm (7.3”) | 210 mm (8,3") | 230 mm (9 1⁄16”) | 380 / 225 mm (15” / 8 7⁄8”) | 210 / 185 mm (8 1⁄4” / 7 1⁄4”) | 238 mm (9.37” ) |
Hopper volume | 5 m³ (6.6 yd³) | 5 m³ (6.6 yd³) | 3.5 m³ (4.5 yd³) | 9 m³ (11.8 yd³) | 5 / 8* m³ (6.6 / 10.5* yd³) | 5 / 8* m³ (6.6 / 10.5* yd³) | ||
Loading height | 2 700 mm (8’ 9”) | 2 715 mm (8’ 10”) | 3 500 mm (11' 6") | 2 750 mm (9' 0") | 2 900 / 3 600* mm (9’ 6” / 11’ 10”*) | 2 900 / 3 600* mm (9’ 6” / 11’ 10”*) | 2 850 mm (9’ 4”) | 3 880 mm (12’ 9”) |
Loading width | 2 440 mm (8’) | 2 500 mm (8’ 3”) | 1 850 mm (6' 1") | 2 650 mm (8' 8") | 2 800 / 3 900* mm (9’ 2” / 12’ 10”*) | 2 800 / 3 900* mm (9’ 2” / 12’ 10”*) | 1 750 mm (5’ 9”) | 2 790 mm (9’ 2”) |
Main conveyor (discharge height) | 2 900 mm (9’ 6”) | 2 600 mm (8’ 7”) | 2900 mm / 3900 mm (9' 6" / 12' 10") | 2 900 mm / 3 900 mm (9' 6" / 12' 10") | 2 700 / 3 700* mm (8’ 10” / 12’ 2” *) | 2 700 / 3 700* mm (8’ 10” / 12’ 2” *) | ||
Side conveyor (discharge height) | 3,300 mm (10' 10") | 3 300 mm (10' 10") | 2 000 mm (6’ 7”)* | 2 000 mm (6’ 7”)* | ||||
Screen product conveyor (discharge height) | 2 740 mm (9’) | 4 350 mm (14’ 4”) | 5 300 mm (17’ 5”) | |||||
Screen side conveyor(s) (discharge height) | 2 550 mm (8’ 5”) | 3 700 mm (12’ 2”) | 3 600 mm (11’ 10”)* | |||||
Engine manufacturer | CAT® | CAT® | CAT® | CAT® | CAT® | CAT® | CAT® | CAT® |
Power | 310 kW (415 hp) | 310 kW (415 hp) | 310 kW (416 hp) | 310 kW (416 hp) | 403 kW (540 hp) | 403 kW (540 hp) | 310 kW (415 hp) | 470 kW / 700 kVA (630 hp) |
Fuel tank capacity | 630 l (166 gal) | 600 l (159 gal) | 790 l (209 gal) | 790 l (209 gal) | 1 200 l (317 gal) | 1 200 l (317 gal) | 900 l (238 gal) | 1 150 l (304 gal) |
Process control system | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ | Metso IC™ |
Screen model | TK13-30S / TK15-30-2S | Pre-screen TK12-26-2V | TK13-30S* | TK13-30S* | ST4.8 | DS20-55 | ||
Screen length | 3 000 mm (9’ 10”) | 1 800 mm (5' 11") | 1 800 mm (5' 11") | 3 000 mm (9’ 10”) | 3 000 mm (9’ 10”) | 5 480 mm (18’) | 5 500 mm (18’) | |
Screen width | 1 300 / 1 500* mm (4’ 3” / 4’ 11”*) | 1 200 mm (3' 11") | 1 200 mm (3' 11") | 1 300 mm (4’ 3”) | 1 300 mm (4’ 3”) | 1 524 mm (5’) | 2 000 mm (6’ 7”) | |
*as an option |
Models | Lokotrack® LT200HP™ | Lokotrack® LT200HPS™ | Lokotrack® LT200HPX™ | Lokotrack® LT220GP™ | Lokotrack® LT300HP™ | Lokotrack® LT300GP™ | Lokotrack® LT220D™ | Lokotrack® LT330D™ |
---|---|---|---|---|---|---|---|---|
Metrics remote monitoring | ● | ● | ● | ● | ● | ● | ● | ● |
ICr remote control | ● | ● | ● | ● | ● | ● | ● | ● |
Hopper extensions | ● | ● | ● | ● | ||||
Feeder rubber bottom | ● | ● | ||||||
Rubber lining for hopper | ● | ● | ||||||
Side conveyor | ● | ● | ● | ● | ● | ● | ||
Material level control | ● | ● | ● | ● | ● | ● | ||
Metal detector | ● | ● | ● | ● | ● | ● | ||
Long main conveyor | ● | ● | ● | |||||
Remote radio control | ● | ● | ● | ● | ● | ● | ● | ● |
Dust encapsulation | ● | ● | ● | ● | ● | ● | ● | ● |
High pressure water spraying | ● | ● | ● | ● | ● | ● | ● | ● |
Pre-heater for engine | ● | ● | ● | ● | ● | ● | ● | ● |
Hot / cold climate kit | ● | ● | ● | ● | ● | ● | ● | ● |
Extreme cold climate kit | ● | ● | ● | ● | ● | ● | ||
Hydraulic generator | ● | ● | ● | ● | ● | ● | ● | |
Fuel filling pump | ● | ● | ● | ● | ● | ● | ● | ● |
Hydraulic power take off | ● | ● | ● | ● | ● | |||
Interlocking cable | ● | ● | ● | ● | ● | ● | ● | ● |

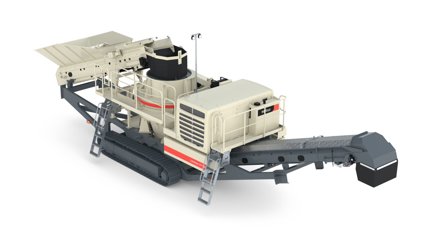

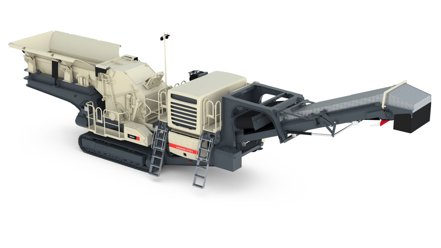

Model | Lokotrack® LT7150™ | Lokotrack® LT1110™ | Lokotrack® LT1213™ |
---|---|---|---|
Transport length | 16 750 mm (54’ 11”) | 14 850 mm (49’) | 15 400 mm (50’ 6”) |
Transport width | 3 000 mm (9’ 10”) | 2 550 mm (8’ 4”) | 2 980 mm (9’ 9”) |
Transport height | 3 400 mm (11’ 1”) | 3 400 mm (11’ 2”) | 3 600 mm (11’ 10”) |
Transport weight | 30 000 kg (66 000 lbs) | 34 800 kg (76 720 lbs) | 43 300 kg (95 460 lbs) |
Crusher unit | Barmac® B7150M™ | Nordberg® NP1110M™ | Nordberg® NP1213M™ |
Nominal feed opening | 1 040 x 800 mm (41" x 31”) | 1 320 x 900 mm (52" x 35½”) | |
Hopper volume | 5 m³ (6.6 yd³) | 5 / 8* m³ (6.6 / 10.5* yd³) | 6 / 9* m³ (8 / 12* yd³) |
Loading height | 2 740 mm (9’ 0”) | 3 620 mm (11’ 10”) | 3 800 mm (12’ 6”) |
Loading width | 2 500 mm (8’ 3”) | 2 600 / 3 500* mm (8’ 7” / 11’ 6”*) | 2 630 / 3 600* mm (8’ 8” / 11’ 10”*) |
Main conveyor (discharge height) | 3 000 mm (9’ 10”) | 2 900 mm (9’ 7”) | 3 100 / 4 000* mm (10’ 2” / 13’ 2”*) |
Side conveyor (discharge height) | 2 000 mm (6’ 7”) | 1 500 mm (4’ 10”) | |
Engine manufacturer | CAT® | CAT® | CAT® |
Power | 310 kW (415 hp) | 224 kW (300 hp) | 310 kW (415 hp) |
Fuel tank capacity | 600 l (159 gal) | 500 l (132 gal) | 630 l (166 gal) |
Process control system | Metso IC™ | Metso IC™ | Metso IC™ |
*as an option |
Model | Lokotrack® LT7150™ | Lokotrack® LT1110™ | Lokotrack® LT1213™ |
---|---|---|---|
Transport length | 16 750 mm (54’ 11”) | 14 850 mm (49’) | 15 400 mm (50’ 6”) |
Transport width | 3 000 mm (9’ 10”) | 2 550 mm (8’ 4”) | 2 980 mm (9’ 9”) |
Transport height | 3 400 mm (11’ 1”) | 3 400 mm (11’ 2”) | 3 600 mm (11’ 10”) |
Transport weight | 30 000 kg (66 000 lbs) | 34 800 kg (76 720 lbs) | 43 300 kg (95 460 lbs) |
Crusher unit | Barmac® B7150M™ | Nordberg® NP1110M™ | Nordberg® NP1213M™ |
Nominal feed opening | 1 040 x 800 mm (41" x 31”) | 1 320 x 900 mm (52" x 35½”) | |
Hopper volume | 5 m³ (6.6 yd³) | 5 / 8* m³ (6.6 / 10.5* yd³) | 6 / 9* m³ (8 / 12* yd³) |
Loading height | 2 740 mm (9’ 0”) | 3 620 mm (11’ 10”) | 3 800 mm (12’ 6”) |
Loading width | 2 500 mm (8’ 3”) | 2 600 / 3 500* mm (8’ 7” / 11’ 6”*) | 2 630 / 3 600* mm (8’ 8” / 11’ 10”*) |
Main conveyor (discharge height) | 3 000 mm (9’ 10”) | 2 900 mm (9’ 7”) | 3 100 / 4 000* mm (10’ 2” / 13’ 2”*) |
Side conveyor (discharge height) | 2 000 mm (6’ 7”) | 1 500 mm (4’ 10”) | |
Engine manufacturer | CAT® | CAT® | CAT® |
Power | 310 kW (415 hp) | 224 kW (300 hp) | 310 kW (415 hp) |
Fuel tank capacity | 600 l (159 gal) | 500 l (132 gal) | 630 l (166 gal) |
Process control system | Metso IC™ | Metso IC™ | Metso IC™ |
*as an option |
Model | Nordtrack™ I908S | Lokotrack® LT7150™ | Lokotrack® LT1110™ | Lokotrack® LT1213™ |
---|---|---|---|---|
Metrics remote monitoring | ● | ● | ● | |
ICr remote control | ● | ● | ● | |
Hopper extensions | ● | ● | ||
Separated feeder and scalper | ● | |||
Feeder rubber bottom | ● | ● | ||
Rubber lining for hopper | ● | ● | ||
Side conveyor | ● | ● | ● | |
Material level contoller | ● | ● | ||
Automatic lubrication unit | ● | |||
Under crusher pan feeder | ● | |||
Long main conveyor | ● | ● | ||
Magnetic separator | ● | ● | ● | |
Remote radio control | ● | ● | ● | |
Dust encapsulation | ● | ● | ● | |
High pressure water spraying | ● | ● | ● | |
Pre-heater for engine | ● | ● | ● | |
Hot / cold climate kit | ● | ● | ● | |
Extreme cold climate kit | ● | ● | ||
Hydraulic generator | ● | ● | ● | |
Fuel filling pump | ● | ● | ● | |
Hydraulic power take off | ● | ● | ● | |
Interlocking cable | ● | ● | ● |
We collect and process your data on this site to better understand how it is used. You can give your consent to all or selected purposes or decline the non-essential ones. Essential cookies, which are necessary for the basic website functionality such as page navigation, cannot be declined. Without these cookies, the website would not function properly. For more details, please refer to our Privacy Notice.
Privacy Notice
