Metso Full portfolio Lokotrack® mobile crushers Lokotrack® LT1213™ & LT1213S™ mobile HSI crusher
Lokotrack® LT1213™ & LT1213S™ mobile HSI crusher

Lokotrack® LT1213™ & LT1213S™ mobile HSI crusher

Energy efficient mobile crushing plant with great capacity

Lokotrack® LT1213™ mobile HSI crusher combines mobility, high capacity and versatility. Also called as mobile impactor crusher, Lokotrack® LT1213™ can operate as a primary or secondary unit.
Contact our sales experts
Lokotrack® 40 years
The year 2025 marks a remarkable milestone for Metso as we celebrate the 40th anniversary of the iconic Lokotrack® mobile crushers.
Read more

High capacity crushing

Reliable and versatile impact crusher

Efficient fuel economy

Safe and easy to operate

Lokotrack® LT1213™ mobile HSI crusher is versatile and provides high-capacity

Lokotrack® LT1213™ mobile HSI crusher is known for high capacity and efficient fuel economy. It is equipped with a horizontal shaft impact (HSI) crushing unit and can operate as a primary or secondary crusher, especially in recycling applications such as processing concrete, asphalt and demolition waste. Lokotrack® LT1213™ is also a perfect choice for limestone applications.

High-capacity crushing

High-capacity is provided by the reliable and versatile Nordberg® NP1213™ HSI crushing unit with an effective and large feed opening. Crushing power is secured by the CAT® diesel engine, and the high-quality blow bars ensure good lifetime.

Optimum crushing results

The Metso IC™ process control system optimizes crushing results. It allows one-button start and stop, with built-in troubleshooting and a variety of parameter selections. All Lokotrack® mobile crushers in the same crushing process can be connected to the Metso IC™ system. In addition, the entire process can be conveniently monitored and controlled from the excavator's cab using the Metso Remote IC application for remote process control.

Features

Lokotrack® LT1213™ has a radial side conveyor and hydraulic locking on the feed hopper for easy set-up and flexible operation. The HSI crushing plant also features an advanced gearbox as standard that provides the efficient direct crusher drive system with assisted start. An optimized hydraulic circuit with an independent fan and stand-by function gives up to 20% lower fuel consumption and more power for the crusher.

Safe and easy maintenance

Metso is investing heavily in its equipment safety and easy maintenance. In Lokotrack® LT1213™, safe and easy daily operations are ensured with an extensive platform and easy access to impact crusher maintenance points.

Ideal for

  • Limestone quarry applications
  • Recycling applications such as asphalt and concrete

Benefits

  • Energy efficient crushing with great capacity
  • Suitable for wide range of applications such as limestone and recycling
  • Safe and easy to use and operate
  • Long-term investment with high resale value
LT1213S™ for on-board screening

LT1213™ can be equipped with high capacity dual-slope screen and return conveyor to provide high on-board screening capacity. With the screening unit it is called Lokotrack® LT1213S™ that combines efficient crushing and accurate separation in the same chassis.

LT1213S™ for on-board screening

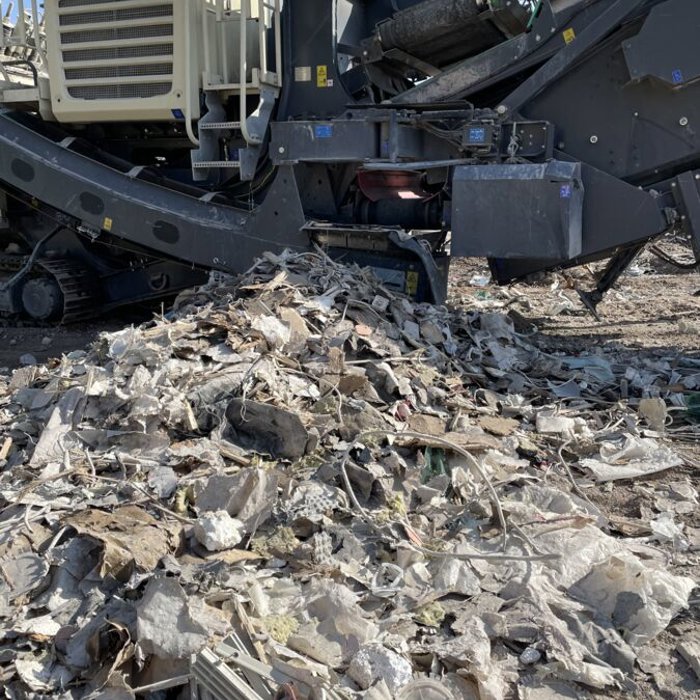

Features for recycling
Features for recycling

The efficient recycling work requires specific equipment:

  • Robust pan feeder under the crusher directs the material to the main conveyor preventing blockages and belt failures
  • Windshifter for separating light materials from the screened aggregates
  • High pressure water suppression system prevents dust from spreading
  • Liftable, remotely controlled magnet separates iron safely and without interruptions. For maximum performance, different magnet options are available. Stainless steel discharge chutes secure the material flow and prevent blockages
  • Various durable screening media from grizzlies to punch plates and screen meshes guarantee efficient screening even in the most challenging applications
Take a look at Lokotrack® LT1213™ in action!
Click to watch the video

Lokotrack® LT1213™ and LT1213S™ mobile HSI crushers` technical specifications

Model
Lokotrack® LT1213™
 Lokotrack® LT1213S™
Crushing unitNordberg® NP1213M™Nordberg® NP1213M™
Feed opening1,320 x 900 mm (52” x 35½”)1,320 x 900 mm (52” x 35½”)
EngineCAT®, 310 kW (415 hp)CAT®, 310 kW (415 hp)
ScreenDS16-36
Screening area5.75 m2 (6.9 yd2)
Crusher motor-
Generator-
Transport dimensions
Weight42,000 kg (93,000 lbs)55,000 kg (121,250 lbs)
Width2,980 mm (9'9")3,200 mm (10'6")
Height3,600 mm (11'10")3,630 mm (11'11")
Length15,400 mm (50'6")19,400 mm (63'8")

*) The technical details provided are based on the basic configuration and should not be used for obtaining transport permits.
