Lokotrack® 40 years
The year 2025 marks a remarkable milestone for Metso as we celebrate the 40th anniversary of the iconic Lokotrack® mobile crushers.

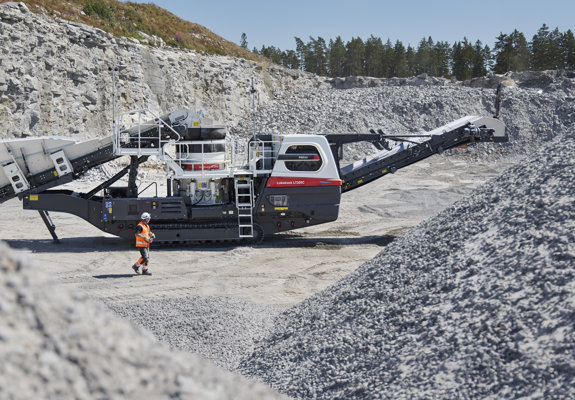

Lokotrack® LT350C is the first cone crusher in the new industry leading Lokotrack® EC range and a part of our Metso Plus offering. It introduces new diesel-electric power line and the Nordberg® HP350e cone crusher together with electric process functions and unseen usability improvements. The LT350C can be upgraded to adapt to evolving mobile crushing requirements, ensuring lower operational costs and reduced CO2 emissions.
Build your own Lokotrack® LT350C online tool Set-up your LT350C whether it is more powerful engine, extended feeder walls or dust covers. Try it and get a quote for your machine!
Lokotrack EC range - LT400J and LT350C in action! See the new LT400J mobile jaw crusher and LT350C cone crusher in action at Lokolaunch live demo
Connect to the grid for lower operational costs with smaller carbon footprint
The new diesel-electric powerline ensures efficient power for crushing. Connecting to the grid not only lowers the CO2 emissions of the operations meeting the sustainability targets and lowers the noise to surrounding areas as well.
All the process functions are electric and the electric components endure demanding conditions and are globally available for quick and easy maintenance. Using electricity in process functions also lowers significantly hydraulic oil volume that is only 81 litres / 21 gal. Common parts between the models lowers the parts inventory and makes maintenance easier and quicker.

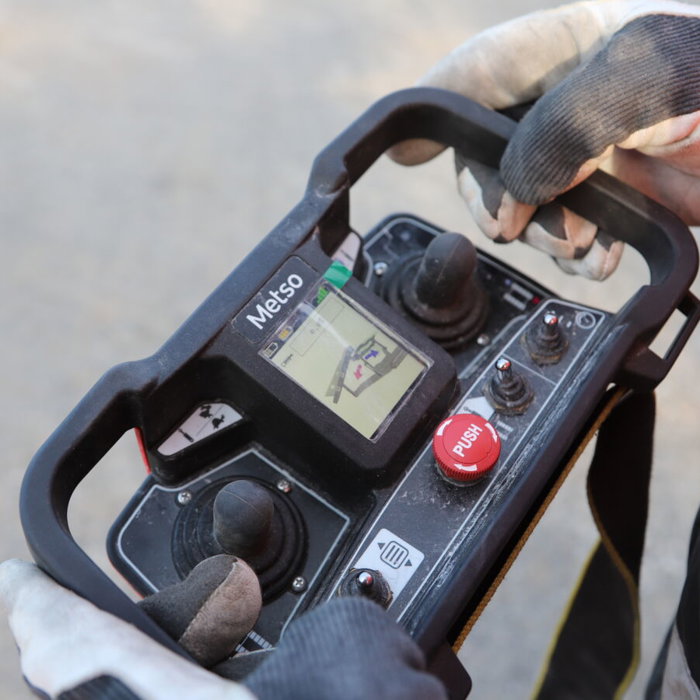

Set up remotely with the new remote control
The LT350C has designed with user in center. The machine can be set-up to operation and for transport from safe distance from the machine. Maintenance points are designed for easy access from ground level or from the wide service platforms.
Steady production for years to come
Lokotrack® crushers and screens are known for their dependability, long lifetime and high resale value. The cutting-edge technology of the new Lokotrack EC range keep your machine going without unnecessary process stops:

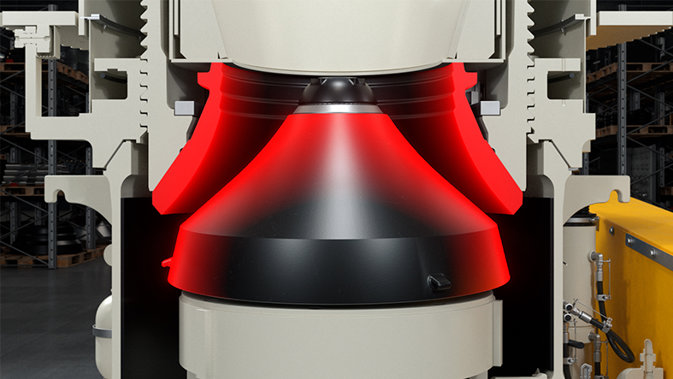

- Latest crushing and screening technologies providing high capacity. LT350C features Nordberg® HP350e cone crusher - the latest edition to the HP range with higher capacity and easy maintenance without backing liners.
- Process status light shows the operator in a blink of an eye when to feed the process.
Automation protects your machine and keeps the process going
Lokotrack LT350C together with all the EC range machines have an advanced IC process automation. This renewed automation keeps the process going, protects the equipment with interlocking the crushing chain together and letting you feed the process close to maximum capacity. More sensors have been added to avoid unnecessary process stops or equipment failures. One example is generator bearing temperature sensor that monitors the bearing condition often caused by dust.
Digital tools for safe and smooth production
Remote IC app for remote process of a Lokotrack train further improves productivity and safety at the site. The app is installed to a mobile device and it connects all the Lokotrack machines together letting the operator control the process safely from the excavator cabin without needing to jump off and do the settings at the IC panel.
Metso Metrics online monitoring service however keeps you up to date on all of the processes and Lokotrack fleet's when you are not at the site.
Lokotrack® LT350C™ mobile cone crusher's technical specifications
| Crushing unit | The new Nordberg® HP350e™ cone crusher |
| Feed size | 246 mm (9' 7") |
| Engine | 400/385 kW (536/516 hp) |
| Generator power | 550 kVa |
| Fuel tank / hydraulic tank | 1000 l / 80 l (264 / 21 gal) |
| Transport dimensions | |
| Weight | 50,000 kg (111,000 lbs) |
| Width | 3,000 mm (9´10") |
| Height | 3,800 mm (12’ 6”) |
| Length | 21,000 mm (66’ 10") |
*) The technical details provided are based on the basic configuration and should not be used for obtaining transport permits.
