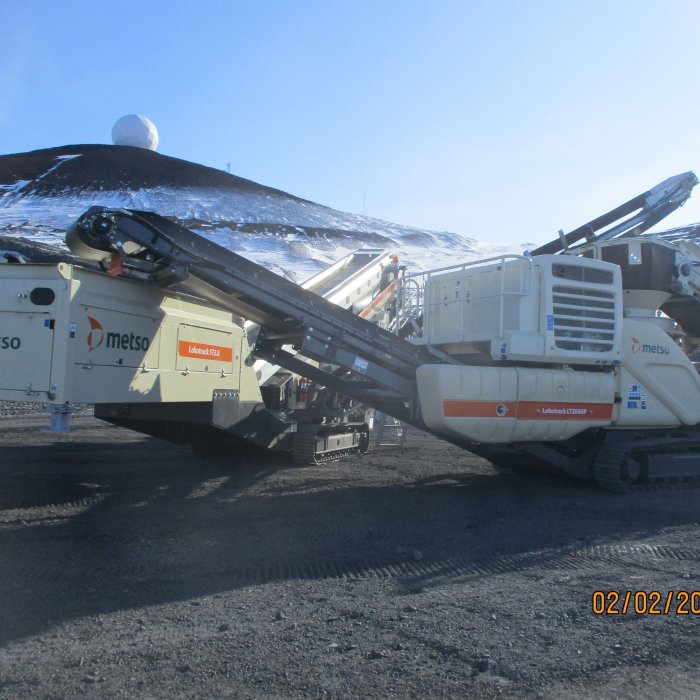

Lokotrack® ST3.8™ performs in Antarctica
Leidos, the prime contractor for the Antarctic Support Contract, chose Metso Lokotrack for its rebuilding project at McMurdo research station.

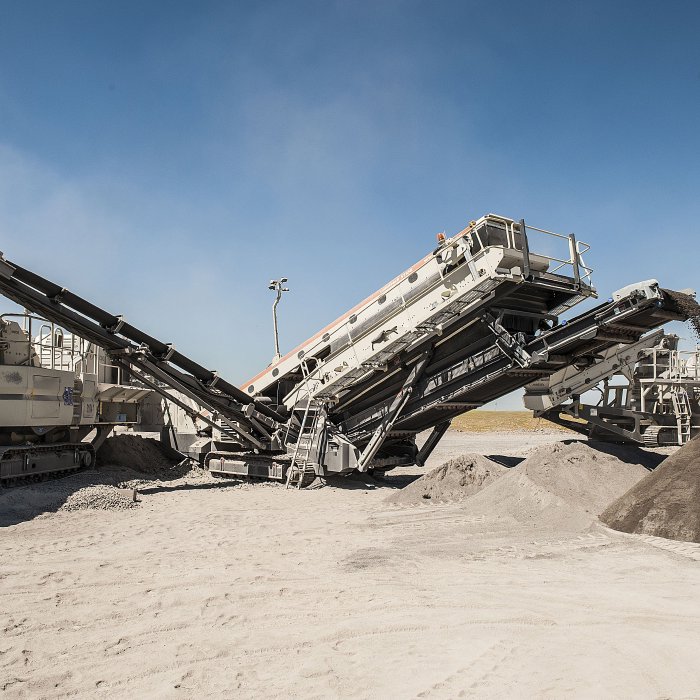

Lokotrack® ST3.8™ & ST3.8E™ mobile screen provides precise screening and high capacity within compact dimensions. Double deck screen, Metso IC™ process control system and powerful CAT® diesel engine with e-Power make Lokotrack® ST3.8™ & ST3.8E™ an efficient unit to work with in various standalone and multistage applications.
Reduced downtime
Optimized hydraulic system and easy access to the service locations.
Multi-functionality
Fine-tune to perfectly match your operational requirements.
Quick adaptation
Interchangeable screen meshes.
Lokotrack® ST3.8™ & ST3.8E™ mobile screen – Great choice for rental business
Energy efficiency
Lokotrack® ST3.8™ & ST3.8E™ mobile screen’s new engine package provides the best fuel efficiency due to the optimized hydraulic system and easy access to the service locations.

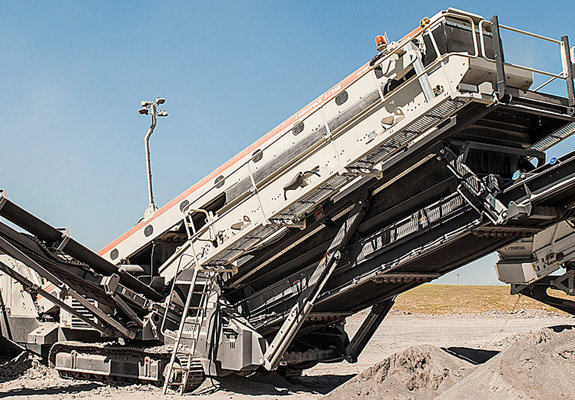

It is equipped with e-Power that gives you twice the choice for your business. Plug it to the grid for quiet, emission-free and economical scalping in the cities, and enjoy the flexibility of modern low-emission and low noise diesel engine out in the wild.
Learn more about Lokotrack® e-Power hybrid crushers and screens
Multi-functionality
With features like radio remote control and a double-deck vibrating grizzly, you can fine-tune Lokotrack® ST3.8™ & ST3.8E™ mobile screen to perfectly match your operational requirements.
Optional Metso IC™ process control system offers single-button start-up and the possibility to interlock the Lokotrack® ST3.8™ & ST3.8E™ with other crushers and screens.
Quick adaptation
Screen meshes are interchangeable, which means less hassle on-site and with inventory and quicker adaption to different applications. Side platforms come as standard to enable safe maintenance of the unit.
Reliability
High-quality components and engineering without compromises ensure trouble-free production.
70% less hydraulic oil with 20% more power
We have significantly reduced the volume of hydraulic oil together with introducing the new, low emission Stage V engine. The lower hydraulic oil volume is achieved by the renewed design of the hydraulic oil tank and oil circulation. This means that you can use less oil but keep the same maintenance interval. With separate pumps for screen and conveyors there is even 20% more power compared to previous models. Great improvements towards more sustainable screening!
Optimum crushing results
The Metso IC™ process control system optimizes crushing results. It allows one-button start and stop, with built-in troubleshooting and a variety of parameter selections. All Lokotrack® mobile crushers in the same crushing process can be connected to the Metso IC™ system. In addition, the entire process can be conveniently monitored and controlled from the excavator's cab using the Metso Remote IC application for remote process control.
Lokotrack® ST3.8™ & ST3.8E™ mobile screen's technical specifications
Model | Lokotrack® ST3.8™ & ST3.8E™ |
|---|---|
| Screen size | 5,480 x 1,520 mm (18’ x 5’) |
| Screening area | 8.4 m² (10 yd²) |
| Screening working angle | 18-30° |
| Decks | 2 |
| Feed hopper | 7.5 m³ (9.6 yd³) |
| e-Power | 2 x 37,5 kW |
| Engine | CAT®, 100 kW (134 hp)* Stage V |
| *Available for EU with 98 kW Tier3 CSE engine | |
| Transport dimensions | |
| Weight | 30,000 kg (66,100 lbs) |
| Width | 3,000 mm (9’ 10”) |
| Height | 3,330 mm (10’ 11”) |
| Length | 18,000 mm (59’ 1") |
*) The technical details provided are based on the basic configuration and should not be used for obtaining transport permits.
