Nordwheeler™ NW106 NW Rapid™ portable jaw crusher is engineered for quick set up to be used as a stand-alone primary crusher or in a primary crushing station. A portable crushing plant can be moved to a different location within 1-2 years, making it easier to get a crushing permit.
Suitable for variety of applications
Wheel-mounted unit
Portable crushing equipment
Safe and easy to operate

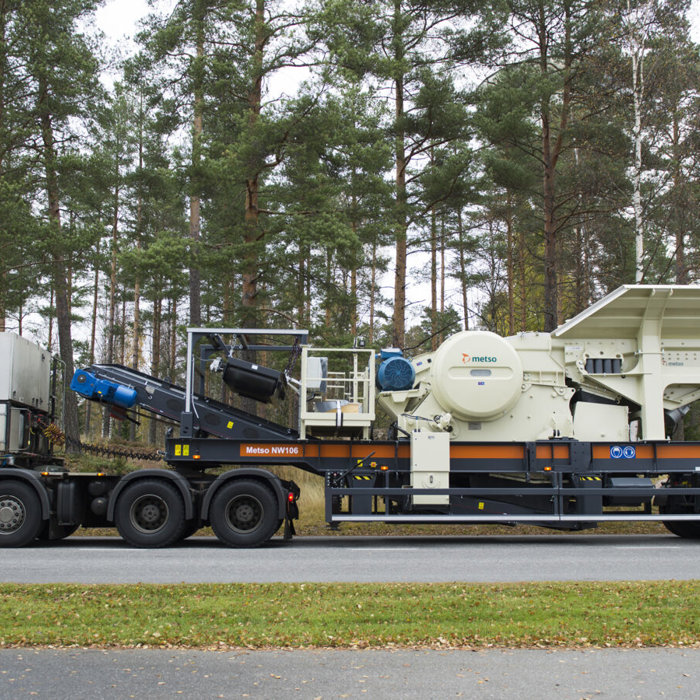

NW106 portable jaw crusher for primary crushing
NW106 portable jaw crusher, also known as portable jaw crushing plant, is a primary crusher suitable for reducing hard and soft rock in aggregates production. The crushing unit has a pinned and bolted, non-welded frame construction which provides excellent fatigue strength even in the toughest applications. The crusher’s capacity is up to 250 tph.
NW Rapid solutions include ready-made plant layouts, flow sheets and pre-designed crushing stations for the entire crushing and screening plant. Primary, secondary and tertiary crushing stations include not only a portable crusher or screen, but also the needed feeders, surge bins and conveyors to connect all the equipment as an entire crushing and screening plant.
Quick to set up with pre-designed crushing stations
NW Rapid solutions include ready-made plant layouts, flow sheets and pre-designed crushing stations for the entire crushing and screening plant. Primary, secondary and tertiary crushing stations include not only a portable crusher or screen, but also the needed feeders, surge bins and conveyors to connect all the equipment as an entire crushing and screening plant.
Crusher process control monitors, controls and optimizes the crushing process
NW106™ features Metso IC™ crusher process control as standard. It ensures easy and safe use of the crushing station, as well as enables steering the feeder, crusher and conveyors using a single-touch screen.
It also has a Remote User Interface (RUI), which ensures more efficient and safer use of the crushing station. The system can be centrally controlled from a distance, leading to safer and easier operation of the machine. RUI is included with NW Rapid plants with no extra license costs.

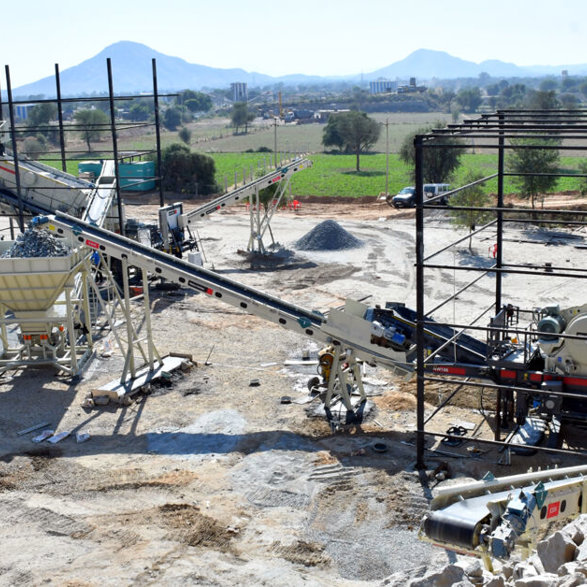

Sustainable crushing with electric operations
NW Rapid machines are all electric. This makes the operation more sustainable, especially when using renewable energy source. Electrically operated units are easy to maintain, and their operational costs are significantly lower than diesel-driven machines. In addition, when grid is not available, servicing a single large diesel generator on the site is less demanding than service multiple diesel engines in each unit.
Optional features
This jaw crusher can be equipped with optional hydraulically adjusted support legs, side walls, and on-board main and side conveyors which can be set up without using heavy cranes. Furthermore, a rock breaker can be added, and metals can be removed from the end product with an optional magnetic separator.

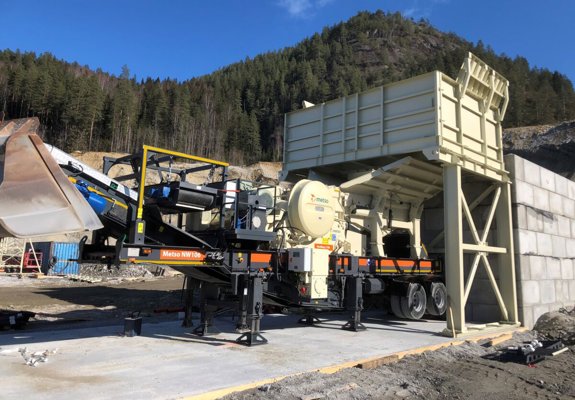

NW106™ Rapid portable jaw crusher’s technical specifications
{{decodeHtmlEntities(field.label)}} |
|---|
*) The technical details provided are based on the basic configuration and should not be used for obtaining transport permits.
