Nordwheeler™ NW200HPS NW Rapid™

Portable cone crusher with screener

Nordwheeler™ NW200HPS NW Rapid ™ portable cone crusher has a crusher and a four deck dual-slope screener on the same chassis. It is used secondary or tertiary crushing stations of a portable plant. It can be easily transported from one site to another within 1-2 years, making it easier to get a crushing permit.

NW200HPS - more powerful curshing with HP220e

NW200HPS portable cone crusher can be relocated within the site, also known as pit portable, and moved easily to a new site on road transport. It features the Nordberg® HP200e cone crusher with up to +15-20% performance in Secondary application, and up to +10-15% performance in Tertiary application (compared to HP200).

Due to its compact size and wheel-mounted platform, this portable crusher can be re-located within the site, also known as pit portable, and transported easily from site to site by road. It can also be transported easily in a shipping container overseas before assembly.

Reliable and efficient crushing and screening

NW Rapid plants have ready-made process flowsheets for crushing stations with standard equipment that makes the portable plant fast to deliver. For overseas delivery NW200HPS, as all NW Rapid machines, fits to a shipping container.

This portable cone crusher also has a big 10 m2 (12 yd2) four-deck dual-slope vibrating screen in the same chassis, which brings 20% more crushing and screening performance compared with conventional solutions in the same size class.

The material can be fed by separate conveyor belts from the primary crushing station NW106 or NW116 or through a separate feed hopper either to the crusher or screen. In a multistage crushing process, the crusher can produce up to four calibrated end products.

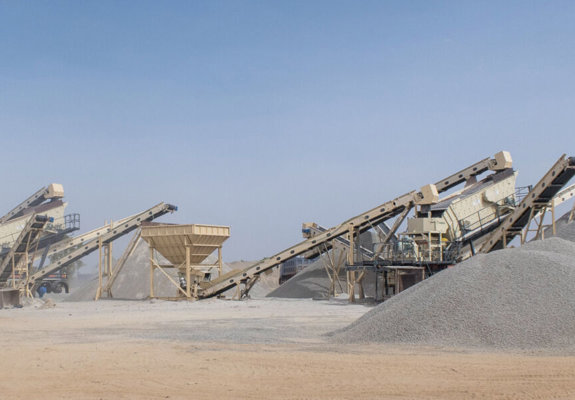

NW200HPS portable cone crusher for secondary or tertiary crushing stations

Crusher process control

Metso IC™ crusher process control is a standard feature for portable crushers. It automates, monitors, controls and optimizes the crushing process.

NW200HPS also has a Remote User Interface (RUI), which ensures more efficient and safer use of the plant. The system can be centrally controlled from a distance, leading to safer and easier operation of the machine. It is included with NW Rapid plants with no extra license costs.

The remote system also allows for adjusting the process without stopping it, further improving productivity and reducing downtime through preventive maintenance. The end product quality will also be more consistent due to an automatically controlled process.

Sustainable crushing with all electric crusher

NW Rapid machines are all electric. This makes the operation more sustainable, especially when using renewable energy source. Electrically operated units are easy to maintain, and their operational costs are significantly lower than diesel-driven machines. In addition, when grid is not available, servicing a single large diesel generator on the site is less demanding than service multiple diesel engines in each unit.

Quick to set up with pre-designed crushing stations

NW Rapid solutions include ready-made plant layouts, flow sheets and pre-designed crushing stations for the entire crushing and screening plant. Primary, secondary and tertiary crushing stations include not only a portable crusher or screen, but also the needed feeders, surge bins and conveyors to connect all the equipment as an entire crushing and screening plant. In addition, a crushing permit can be easier to get for a portable plant compared to a stationary plant crushing permit.

Optional features

The crusher can be equipped with optional hydraulically operated screen lifting and adjustable hydraulic support legs, enabling the plant to be ready for action in hours after arriving on site.

The onboard screen undersize conveyor makes the transportability even better, as the conveyor is not needed to transport and install separately. This is a good option to be included if the machine is often transported on road between sites.

It is possible to have a separate electric center for the hydraulic power unit so the machine can prepare for operation mode even before main electricity for the plant is available.

For road transportation where lower axle weight is needed, the unit can be fitted with an extra axle. Combined with lights, side, mud guards and ABS-brakes, NW200HPS can be transported on road safely and in one compact package.

Safe and easy to operate and maintain

This portable cone crusher is safe and easy to operate and maintain. Features such as spacious and high accessibility service platforms make the daily operation and maintenance of the plant safe, easy and quick.

The electric center and working platform have been isolated from the chassis to avoid shaking and improving operator’s safety. The stairs on to the working platform have proper handrails and can be shifted from the left to the right hand side of the machine.

Global expertise, local support

Portable cone crushers are supported by Metso’s global network of service professionals and optimization experts. A wide range of high-quality spare parts and wear parts can be delivered promptly and tailored for any specific process need.

Benefits

Versatile HP crusher with integrated screen on the same wheel-mounted chassis
Quick set up and installation with ready-made plant layouts and pre-designed crushing stations
Pit portable and smooth relocation between sites
Easier to get crushing permits for portable plants
