NW330GP NW Rapid™ portable cone crusher allows you to change the crushing process and end products using the same equipment, significantly increasing the process flexibility. The electric powered portable plants are fast to deliver, easy to set up, and can be relocated periodically to a new site by towing on road making crushing permitting easier.

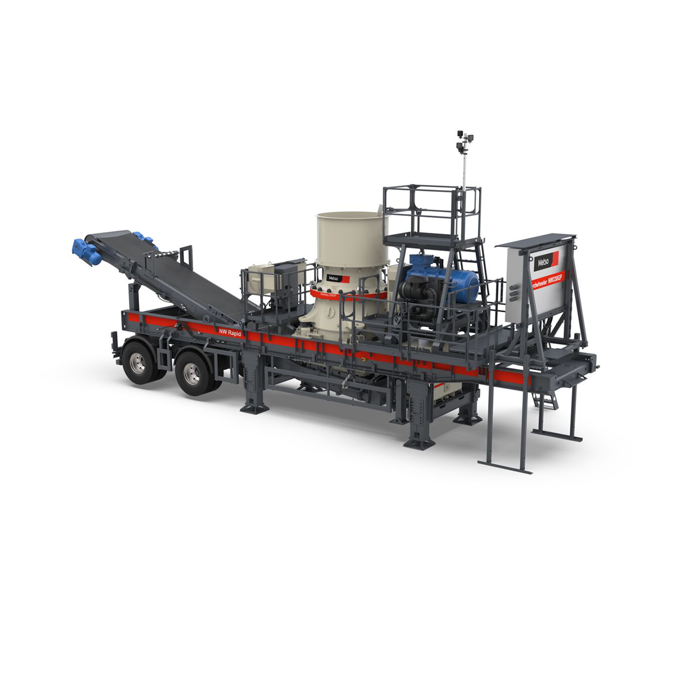

NW330GP portable cone crusher adjustable for any crushing need
Nordwheeler™ NW330GP is a portable cone crusher used in second, third, or fourth stage of the crushing process. With no integrated screening unit, it is easier to place in different stages of a crushing process increasingly adding flexibility in the plant layout. With portable crushers and screens, you can use the same equipment when feed material and end product requirements change. This will significantly increase your business opportunities and profitability.

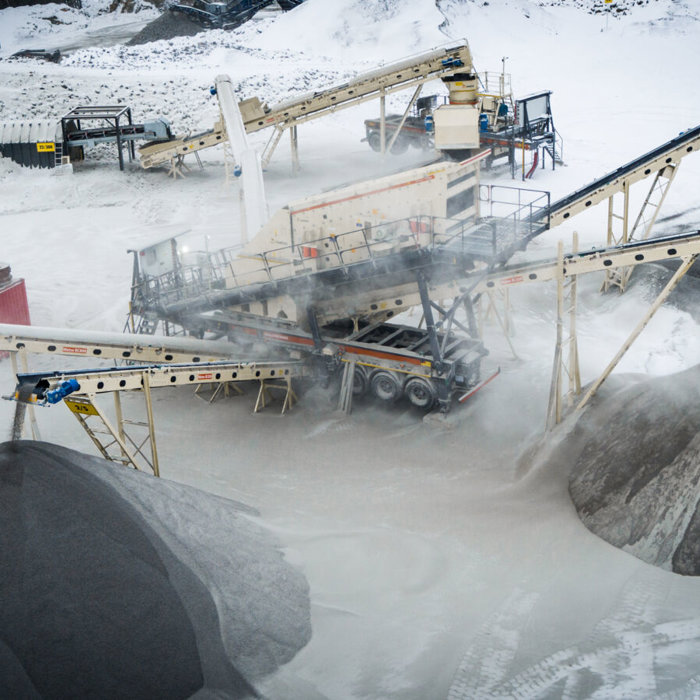

More process flexibility without an integrated screen
NW330GP is built around the Nordberg® GP330™ versatile cone crusher that can be adjusted for any application need. It has high nominal power, effective stroke, and cavity range. The crusher’s cavity and stroke can be altered according to the application requirements to achieve high capacity, top end product quality, as well as low wear part cost. GP330 has 315 kW (425 hp) crushing power resulting to capacity up to 420 Mtph (462 Stph).
Crushing in weeks instead of months
For fast delivery of a new portable plant, NW Rapid portable crushers are available in standard offering. Nordwheeler plants include ready-made plant layouts, flowsheets and pre-designed crushing stations. The stations include not only portable machines, but also the needed feeders, surge hoppers, and conveyors. The plant assembly is thoroughly documented for easy set up and our global expert support is always available when needed.
Relocating the equipment makes permitting easier
For easy transport, NW330GP has an advanced wheel-mounted chassis with 2-axle removable bogie and standard transportation dimensions. Thanks to the EU road regulation compliance, it can be transported without special transportation permits in many countries.
At the site, the machines are set up quickly with hydraulic support legs and no heavy crane is needed. The portable plants don’t require heavy concrete foundations, and the ability to relocate the entire site makes the crushing permitting easier.
Check the video
00:00

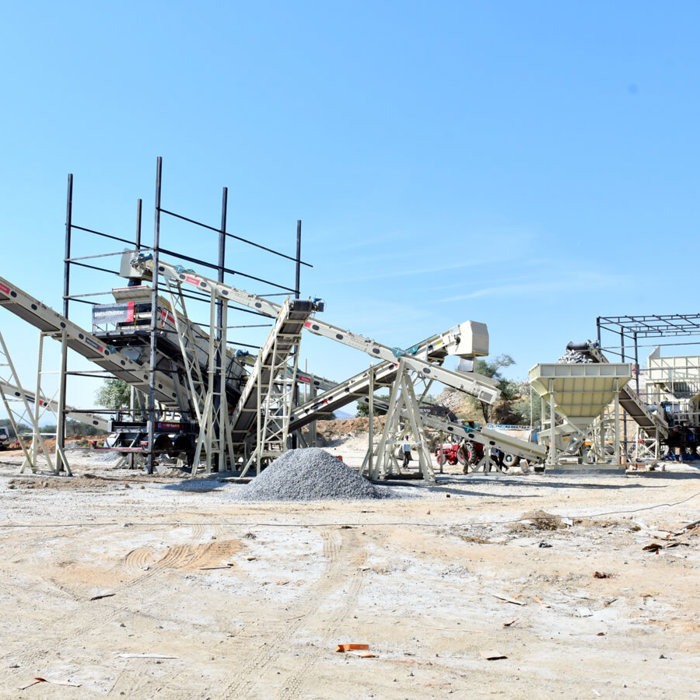

Lower CO2 emissions with electricity
Nordwheeler portable plants are all electric. Lower CO2 emissions make the crushing and screening operation more sustainable, especially when using renewable energy sources. Many times, electric equipment is an important requirement for crushing permits and when bidding for contracts. Electrically operated units are easy to maintain, and their operational costs are significantly lower than diesel-driven machines. In addition, when grid is not available, servicing a single large diesel generator on the site is less demanding than servicing multiple diesel engines in each unit.
Crusher process control for improved productivity
Metso IC™ crusher process control is a standard feature for portable crushers. It automates, monitors, controls, and optimizes the crushing process.
Nordwheeler plant includes a Remote User Interface (RUI), which ensures more efficient and safer use of the plant. The system can be centrally controlled from a distance, leading to safer and easier operation of the machine.
The remote system also allows adjusting the process without stopping it, further improving productivity and reducing downtime through preventive maintenance. The end product quality will also be more consistent due to an automatically controlled process.
IC process control and RUI are included with Nordwheeler plants without extra costs.

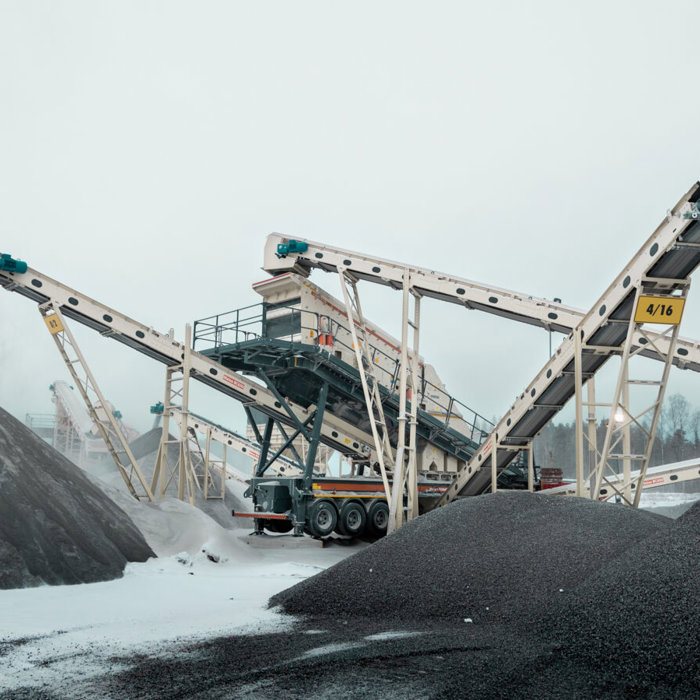

Safe and easy to operate and maintain
As with all Metso products, safety is priority in the NW330GP. Features such as spacious walkways, stairs, and handrails make the daily operation and maintenance of the plant safe and working at your crushing site more attractive for workers.
Global expertise, local support
Portable cone crushers are backed up with Metso’s global network of service professionals, optimization experts and OEM spare and wear parts. As an optional service, the Equipment protection services (EPS) come with extended warranty, scheduled inspections, and Metrics remote monitoring.
Technical data
{{decodeHtmlEntities(field.label)}} |
|---|
*) The technical details provided are based on the basic configuration and should not be used for obtaining transport permits.
