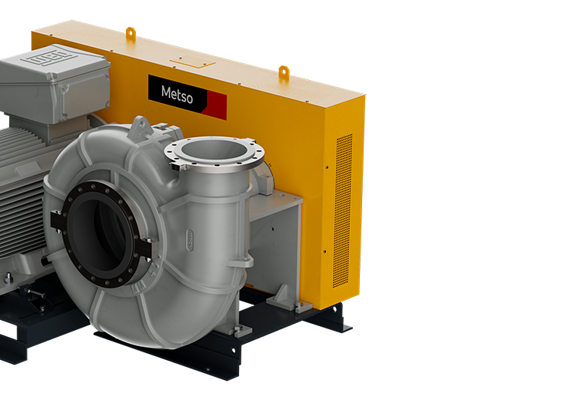

Orion Series horizontal slurry pumps are robust pumping equipment designed for abrasive slurries. The series consists of two ranges, heavy duty H-range and mining duty M-range. In both ranges the pumps are available as rubber lined or hard metal lined versions.

Low total cost

The result of over 60 years of experience from thousands of pumping applications.

Low power consumption

Optimal power utilization. Operate close to the best efficiency point. Improved hydraulic efficiency.

Long wear life

Wear parts of highest quality hard metal, rubber and corrosion-resistant materials. Extra thick sections at known points of wear.

Reliability in operation

Pumps and parts are manufactured under total quality management in ISO certified production units.

New!

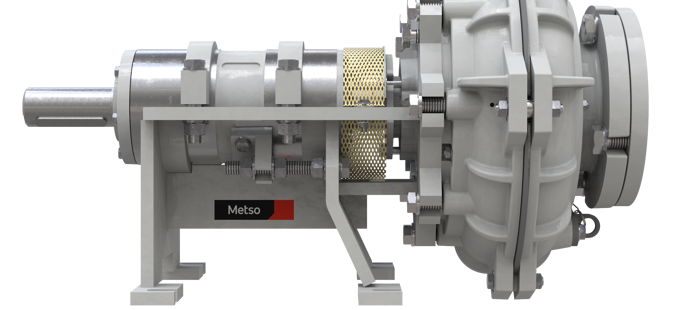

MRE Series pumps provide a trouble-free operation and minimal downtime

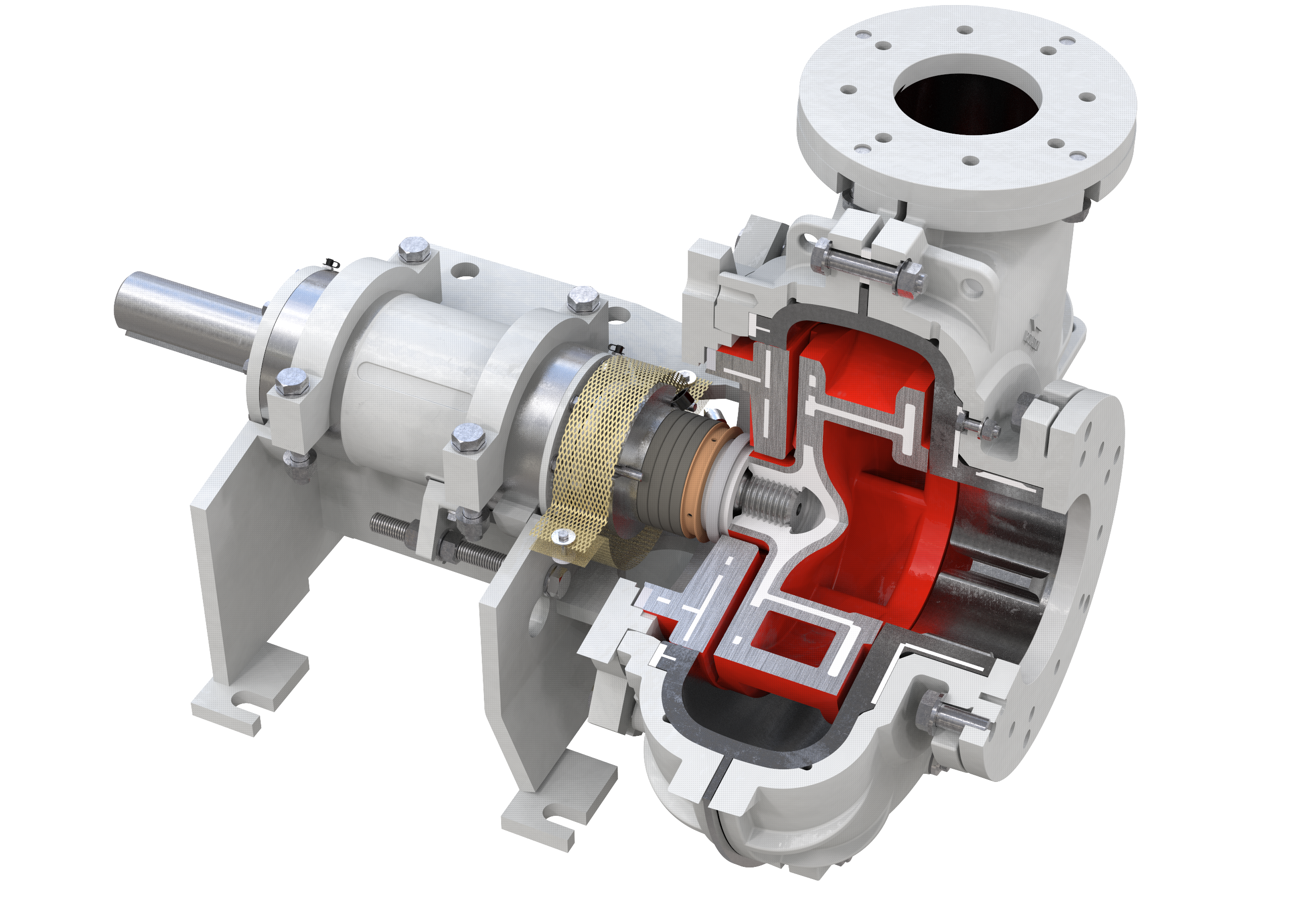

Orion Series H-range and M-range
Orion Series H-range and M-range

Product offering

H-range

Made for the most arduous industrial slurry pumping applications. Consists of hard metal lined (HM) and rubber lined (HR) pumps.

  • Flow rates to 2 800 m³/h – 10 000 USGPM
  • Heads up to 100 m – 330 ft

M-range

Designed for abrasive duties and medium heads in general plant transfer applications. Covers hard metal lined (MM) and rubber lined (MR) pumps.

  • Flow rates to 5 000 m³/h – 20 000 USGPM
  • Heads up to 60 m – 200 ft

To make Orion Series slurry pumps easily fit to your application in any processing plant, the pumps are available with various motor arrangements such as:

  • Direct coupled
  • Overhead mounted
  • Side mounted
  • Reverse overhead mounted
New in 2024

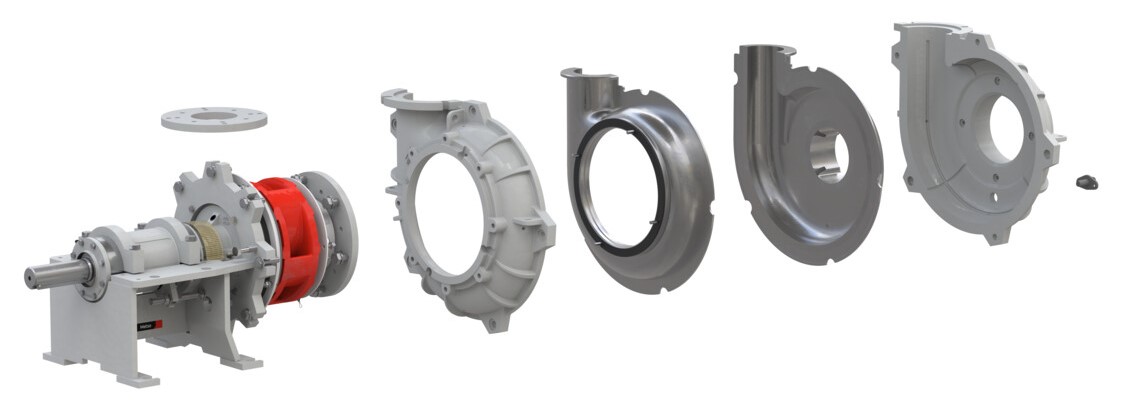

MRE Series horizontal slurry pumps offer a wide range of world-class and robust rubber lined solutions for abrasive pumping applications. Available in nominal sizes 100, 150, 200 and 250.

New in 2024
Typical applications
Typical applications
  • Mining and mineral processing
  • Hydrocyclone feed
  • Mine refuse and tailings
  • In plant slurry transfer pumps
  • Industrial processing
  • Coal and power plant ash
  • Sand and gravel
Features and benefits
  • High efficiency hydraulic design ensures optimal power utilization
  • Range optimization ensures operation close to the best efficiency point
  • Wear parts of highest quality hard metal, rubber and corrosion-resistant materials
  • Interchangeability of hard metal and elastomer parts to provide the best solution for each individual application
  • Specially developed features provide trouble-free operation and a minimum downtime improving the cost effectiveness.
    • Reliable gland seal options to meet individual requirements, using expellers, flushed glands or mechanical seals
    • Pumps and parts are manufactured under total quality management in ISO certified production units
Features and benefits
Options for Orion Series slurry pumps.
Options

IMPELLER OPTIONS

  • Standard closed impeller
  • Induced flow (Vortex) impeller
  • Fully recessed induced flow (Vortex) impeller

SHAFT SEALING OPTIONS

Full flow

Use for suction conditions not suitable for centrifugal sealing when product dilution is not important. Full flow provides the longest packing wearing life.

Low flow

Use for suction conditions not suitable for centrifugal sealing when product dilution needs to be minimized.

Standard expeller shaft seal

Used for no product dilution against positive suction head without leakage.

Metso slurry mechanical seal

Used for zero stuffing box leakage or product dilution. Available as single slurry type mechanical seal or double mechanical seal with external barrier fluid required.

Special configurations

Orion Series slurry pumps can also be supplied in a variety of special configurations:

  • HP – High Pressure: Same as HM with heavier duty case for higher pressure.
  • HG – Heavy-duty Gravel: Suction and discharge flanges are the same size and impeller has less vanes to pass larger material size.
  • HT – Heavy-duty Tunneling: Same as HM with special 90° elbow cast into the casing.
  • HH – High Head: Larger diameter impeller for a given flange sizes.

Contact your local Metso slurry pumping experts for additional information.

Special configurations for Orion Series slurry pumps.
Selection of Orion Series H-range slurry pump size and dimensions.
Selection of Orion Series H-range slurry pump size and dimensions.

Orion Series H-range technical specifications

Model
Inlet
Outlet
Height (H)
Lenght (L)
Width (W)
Total weight (double adjustment)**
Total weight (single adjustment)**
HM50*50 mm (2")32 mm (1,5")433 mm (17")713 mm (28")360 mm (14")160 kg (353 lbs)136 kg (300 lbs)
HM75*75 mm (3")50 mm (2")438 mm (17")734 mm (29")360 mm (14")200 kg (441 lbs)161 kg (355 lbs)
HM100*100 mm (4")75 mm (3")505 mm (20")880 mm (35")424 mm (17")320 kg (705 lbs)250 kg (551 lbs)
HM150*150 mm (6")100 mm (4")630 mm (25")1 025 mm (40")545 mm (21")550 kg ( 1 213 lbs)440 kg (970 lbs)
HM200200 mm (8")150 mm (6")855 mm (34")1 258 mm (50")686 mm (27")1 220 kg (2 690 lbs)1 010 kg (2 227 lbs)
HM250250 mm (10")200 mm (8")1 030 mm (41")1 463 mm (58")830 mm (33")2 040 kg (4 497 lbs)1 660 kg (3 660 lbs)
HM300300 mm (12")250 mm (10")1 150 mm (45")1 591 mm (63")1 000 mm (39")2 850 kg (6 283 lbs)1 900 kg (4 189 lbs)
HR5050 mm (2")32 mm (1,5")428 mm (17")709 mm (28")360 mm (14")180 kg (397 lbs)126 kg (278 lbs)
HR7575 mm (3")50 mm (2")463 mm (18")729 mm (29")360 mm (14")220 kg (485 lbs)145 kg (320 lbs)
HR100100 mm (4")75 mm (3")555 mm (22")913 mm (36")424 mm (17")330 kg (728 lbs)270 kg (595 lbs)
HR150150 mm (6")100 mm (4")713 mm (28")1 097 mm (43")545 mm (21")630 kg (1 389 lbs)510 kg (1 124 lbs)
HR200200 mm (8")150 mm (6")965 mm (38")1 295 mm (51")686 mm (27")1 250 kg (2 756 lbs)1 065 kg (2 348 lbs)
HR250250 mm (10")200 mm (8")1 125 mm (44")1 550 mm (61")830 mm (33")2 110 kg (4 652 lbs)1 715 kg (3 781 lbs)
*Available with fully recessed induced Vortex impeller
**Bare shaft pump weight
Selection of Orion Series M-range slurry pump size and dimensions.
Selection of Orion Series M-range slurry pump size and dimensions.

Orion Series M-range technical specifications

Model
Inlet
Outlet
Height (H)
Lenght (L)
Width (W)
Total weight (double adjustment)**
Total weight (single adjustment)**
MM100*100 mm (4")75 mm (3")454 mm (18")730 mm (29")360 mm (14")230 kg (507 lbs)170 kg (375 lbs)
MM150*150 mm (6")100 mm (4")527 mm (21")889 (35")424 (17")370 kg (816 lbs)275 kg (606 lbs)
MM200*200 mm (8")150 mm (6")710 mm (28")1 073 (42")545 (21")650 kg (1433 lbs)525 kg (1 157 lbs)
MM250250 mm (10")200 mm (8")885 mm (35")1 245 (49")686 (27")1 350 kg (2 976 lbs)1095 kg (2 414 lbs)
MM300300 mm (12")250 mm (10")1 055 mm (42")1 483 (58")830 (33")2 150 kg (4 740 lbs)1775 kg (3 913 lbs)
MM350350 mm (14")300 mm (12")1 080 mm (43")1 527 (60")830 (33")2 300 kg (5 071 lbs)1960 kg (4 321 lbs)
MM400400 mm (16")350 mm (14")1 250 mm (49")1 620 (64")1 000 (39")3 000 kg (6 614 lbs)2105 kg (4 641 lbs)
MM500500 mm (20")450 mm (18")1 726 mm (68")2 180 (86")1 110 (44")5980 kg (13 184 lbs)
MR300300 mm (12")250 mm (10")1 035 mm (41")1 506 (59")830 (33")2450 kg (5 401 lbs)1520 kg (3 351 lbs)
MR350350 mm (14")300 mm (12")1 257 mm (49")1 665 (66")1 000 (39")1600 kg (5 732 lbs)
MR500489 mm (20")438 mm (18")2 064 mm (81")2 689 (106")1 204 (47")8030 kg (17 703 lbs)
*Available with fully recessed induced Vortex impeller
**Bare shaft pump weight
