Metso XM Series
Unique digital package | Lifetime warranty | Unmatched availability
Primary gyratory crushers are the initial driving force for the entire mineral processing circuit. Metso's Superior™ MKIII primary gyratory crushers provide high throughput and less downtime to bring maximum efficiency to your operation.
Higher throughput
Increased speed, installed power and mechanical improvements.
Reduced downtime
New set of shells and concaves brings less downtime.
Advanced automation
Detailed reports and intelligent measurement of crushing operations.
Easy and safe maintenance
Hydraulic separation and individual lifting of shells.
Check the video
Third generation

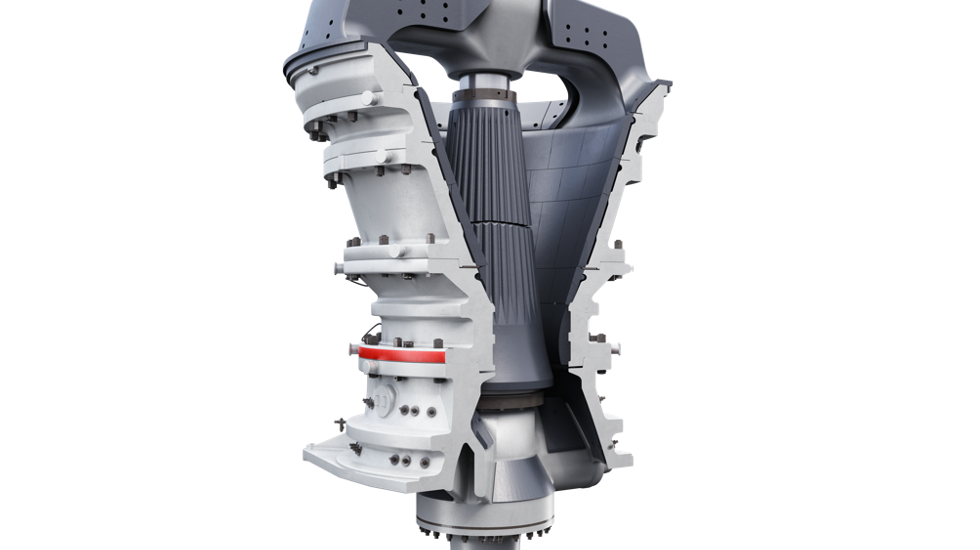

Superior™ MKIII Series is the third generation of the Superior™ primary gyratory crushers. The latest generation is again better, more efficient, safer, and simpler than the previous one.
Superior™ crushers are most often used in mining operations. The product family was developed especially to meet the needs of customers facing ever-changing ore grades and conditions in mining operations.
Higher throughput
Superior™ MKIII primary gyratory crushers have new advancements that bring increased speeds, higher installed power and mechanical improvements.
All of these combine to bring up to a 30% additonal throughput for your primary gyratory crusher.
Superior™ MKIII crushers bring higher capacity making this crusher the most capex efficient primary gyratory crusher in the industry.
Reduced downtime
Superior™ MKIII primary gyratory crushers have new sets of shells and concaves, which have been implemented after countless hours of research and development.
The improvements to the Metso Superior™ MKIII crushers brings up to 70% reduction in downtime.
Crusher maintenance downtime has also produced a significant size decrease of the primary stock pile as well.
Mineral Crusher Pilot (MCP) automation
Metso’s MCP automation is designed to optimize crushing processes in mining operations. By seamlessly integrating advanced digital technologies, MCP empowers operators, enhances safety and improves overall efficiency.
- Connectivity - easy and fast integration with plant control system over an OPC connection
- Remote control - on mobile device with full automated diagnostic and reports. Machine local Wi-Fi access.
- Remote actions - automatic switching process between lube pump/filter modules, smart starters for remote auxiliary equipment overload rearming
- Robustness - network loops, back-up power supply for sensors, UPS for 24VDC, ground DC monitoring, sensor identification with centralized parameter system

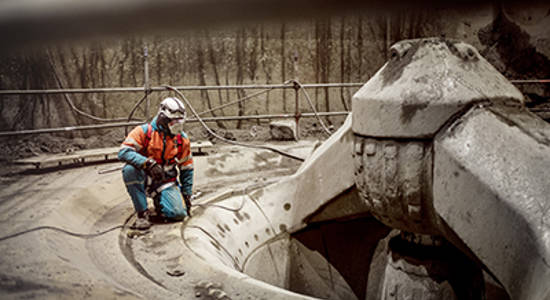

Easy and safe maintenance
Superior™ MKIII primary gyratory crushers bring safety and easy maintenance to any crushing plant.
Hydraulic separation and individual lifting of shells creates a better environment for any workers on site working with the equipment.
The SmartStation also improves operational safety. It helps in understanding where maintenance will be needed and predicts routine maintenance as well.
Superior™ MKIII crushers technical specifications
Model | Weight | Power | Feed opening | Max capacity |
|---|---|---|---|---|
| Superior™ MKIII 42-65 | 120 000 kg (264 600 lbs) | 450 kW (600 hp) | 1066 mm (42") | 5 250 Mtph (5 787 Stph) |
| Superior™ MKIII 50-65 | 153 000 kg (337 300 lbs) | 450 kW (600 hp) | 1270 mm (50") | 6 375 Mtph (7 027 Stph) |
| Superior™ MKIII 54-75 | 242 000 kg (533 500 lbs) | 600 kW (800 hp) | 1370 mm (54") | 7 500 Mtph (8 267 Stph) |
| Superior™ MKIII 62-75 | 298 000 kg (657 000 lbs) | 600 kW (800 hp) | 1575 mm (62") | 8 750 Mtph (9 645 Stph) |
| Superior™ MKIII 60-89 | 365 000 kg (805 000 lbs) | 750 kW (1000 hp) | 1525 mm (60") | 12 500 Mtph (13 779 Stph) |
| Superior™ MKIII 70-89 | 430 000 kg (948 000 lbs) | 900 kW (1200 hp) | 1780 mm (70") | 15 000 Mtph (16 535 Stph) |
| Superior™ MKIII 60-110 | 553 000 kg (1 220 000 lbs) | 1500 kW (2000 hp) | 1525 mm (60") | 17 000 Mtph (18 739 Stph) |
Superior™ MKIII Series crusher models
Primary gyratory crusher parts and services
Check the video
Watch the video to see how we can help you to get the maximum potential out of your crusher to achieve improved crushing performance and lower cost per ton.
Chamber Optimization Program
Get the maximum potential out of your size reduction process to achieve improved crushing performance and lower cost per ton. By using our unique simulation software, our Chamber Optimization experts can design an optimized crushing chamber that matches the exact conditions under which you operate.
Downloads
Brochure: Superior™ MKIII primary gyratory crushers
Size
3.62 MB
Folleto: Chancador Giratorio primario Superior™ MKIII
Size
3.61 MB
Superior™ MKIII粗碎旋回破碎机手册 – 中文
Size
2.47 MB
