Metso Full portfolio Nordtrack™ mobile crushers Nordtrack™ I1011 mobile impact crusher
nordtrack l1011 mobile crusher

Nordtrack™ I1011

Mobile track-mounted impact crusher

The Nordtrack™ I1011 is the biggest mobile impactor crusher in the range with a large crusher, powerful engine and optional hanging screen. This results up to 300+ mtph capacity for construction and demolition waste recycling.
versatile

Versatile solution for rental and plant hires

end product

Calibrated and accurate end product

easy transport

Easy to transport and move on-site

Fuel-efficient direct drive engine

Fuel-efficient direct drive system

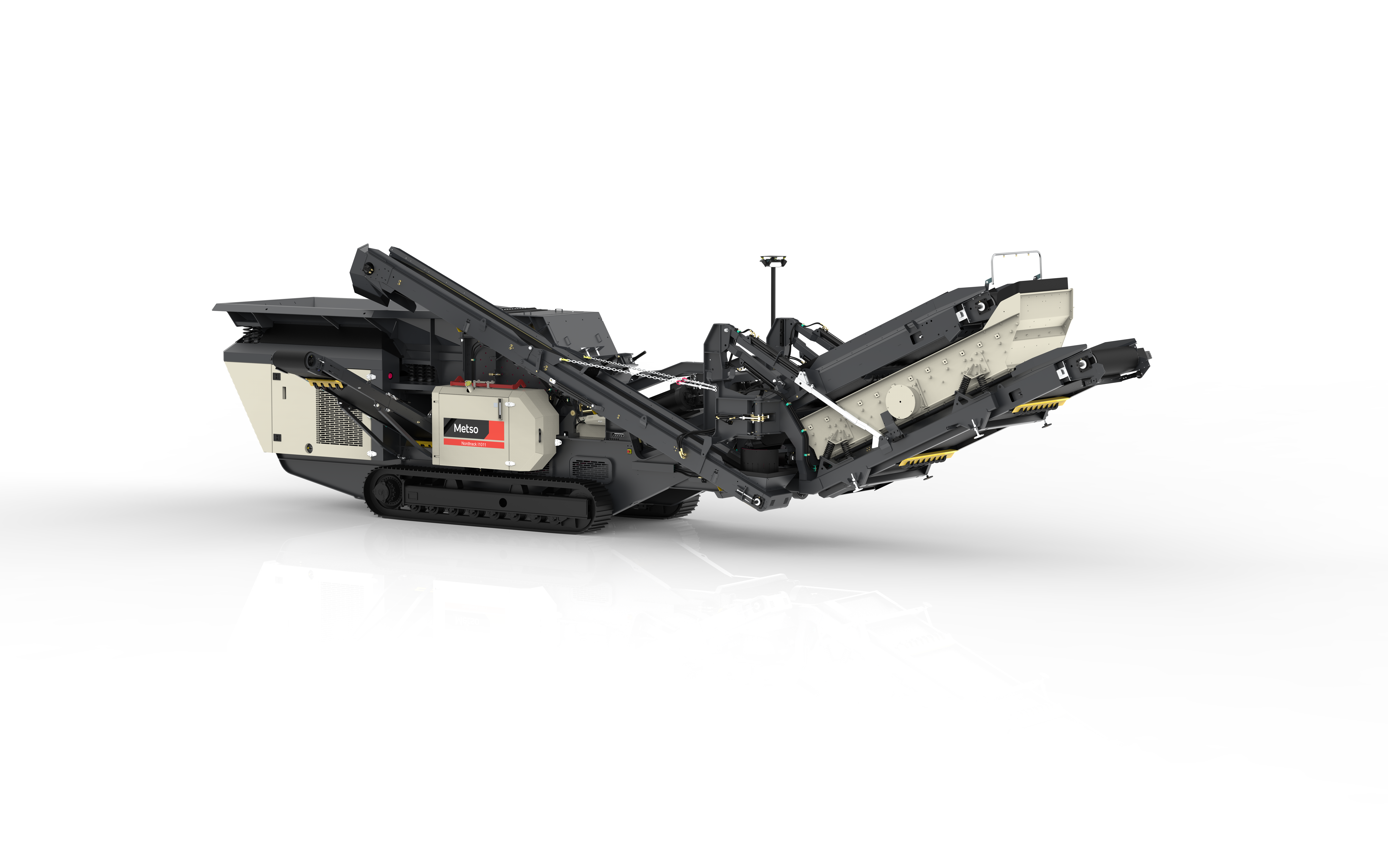

Nordtrack™ I1011 mobile impactor crusher
A bigger and more powerful engine

Together with global support of parts and services, Nordtrack™ I1011 is a dependable tool for contractors and used as a rental unit.

Nordtrack™ I1011 mobile impactor crusher combines high crushing capacities to end product accuracy utilizing optional large hanging screen. As a bigger unit, I1011 offers a bigger crusher and more powerful engine for growing demand for solutions on construction and demolition waste recycling. The 300 mtph capacity and global support for parts and services makes it the perfect tool for contractors and used as rental units.

This mobile impactor crusher has a small footprint for agile moving in tight spaces on construction sites, and compact dimensions for easy transporting between sites.



Hanging screen for precise end products

I1011S is equipped with a large hanging screen for producing precise end products. The screening unit is easy to attach or detach when needed.

I1011 and I1011S mobile impactors are best suited for the following applications:

  • Asphalt recycling
  • Construction waste crushing
  • Soft rock and coal crushing

Key features

  • High performance HSI crusher
  • Efficient dust suppression
  • Fuel efficient engine
  • Agile and easy to move on-site
  • Large engine maintenance space
  • Better safety and ergonomics

Optional equipment

  • Large hanging screen
  • Efficient separation of metal particles
  • Side conveyor
  • The re-circulation conveyor can be used to take the rocks back to the crusher after screening or turned 180 degrees for creating a second stockpile
Nordtrack™ I1011 mobile impactor crusher
Nordtrack™ I1011 mobile impactor crusher
Parts and services

The Nordtrack™ I1011 mobile impactor crusher is available with a complete range of wear and spare parts for safe and easy maintenance, while ensuring the stability, reliability and productivity of your Nordtrack™ equipment. Metso and our global distribution support network ensures the availability of the right parts, services and technical support for your machine, wherever you are.

Longer part lifetime directly reduces the cost per tonne. By using the right parts, understanding how the machine works, and carrying out preventive and predictive maintenance with our help, you will get the most out of your machine.

Wear parts for Nordtrack™ crushers

  • Jaw plates
  • Several kinds of blowbars
  • Lifting tools
nordtrack
3D product demos
View I1011 in 3D!
Check the video

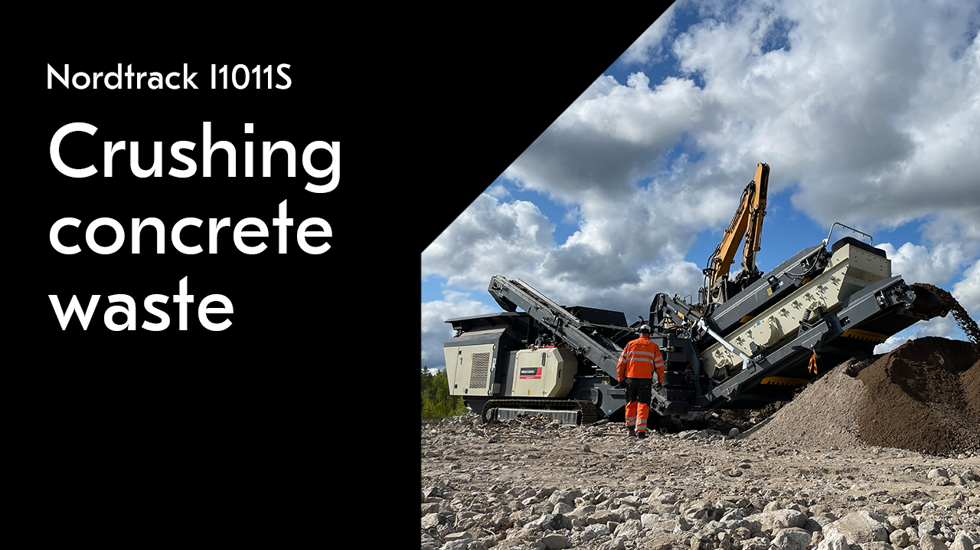

Nordtrack I1011S mobile impactor crusher crushing concrete waste

Nordtrack™ I1011 mobile impact crusher technical specifications

Model
Nordtrack™ I1011
Crushing unitHorizontal shaft impact crusher
Feed opening1150 x 800mm (45” x 32”)
EngineCAT C9.3B 280 kW (375 hp)
Weight34.9 t (76 830 lbs)
41.5 t (91,600 lbs) with screen module
Transport width3 m (9’ 11”)
Transport height3.3 m (10’ 11")
Transport length15.8 m (51’ 10")

*) The technical details provided are based on the basic configuration and should not be used for obtaining transport permits.
