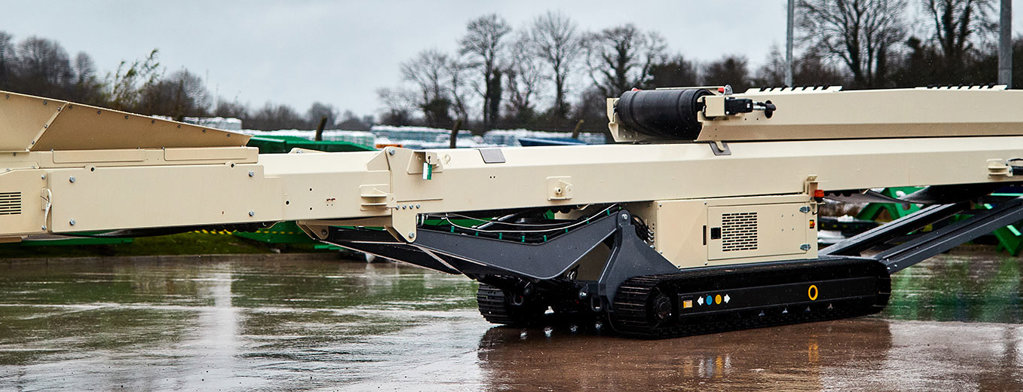

Nordtrack™ CT Series track-mounted stacking conveyors are ideal for applications that require high stockpile capacity and excellent material transfer capabilities. They are often used in aggregates production and recycling applications, but can also be applied in mining operations.
Combine mobility and high capacity
Nordtrack™ CT Series mobile stacking conveyors come in standard configurations for asphalt recycling applications, organic material handling or aggregate production. The choice of options is limited to features that are necessary – so you only pay for the features that you really need.

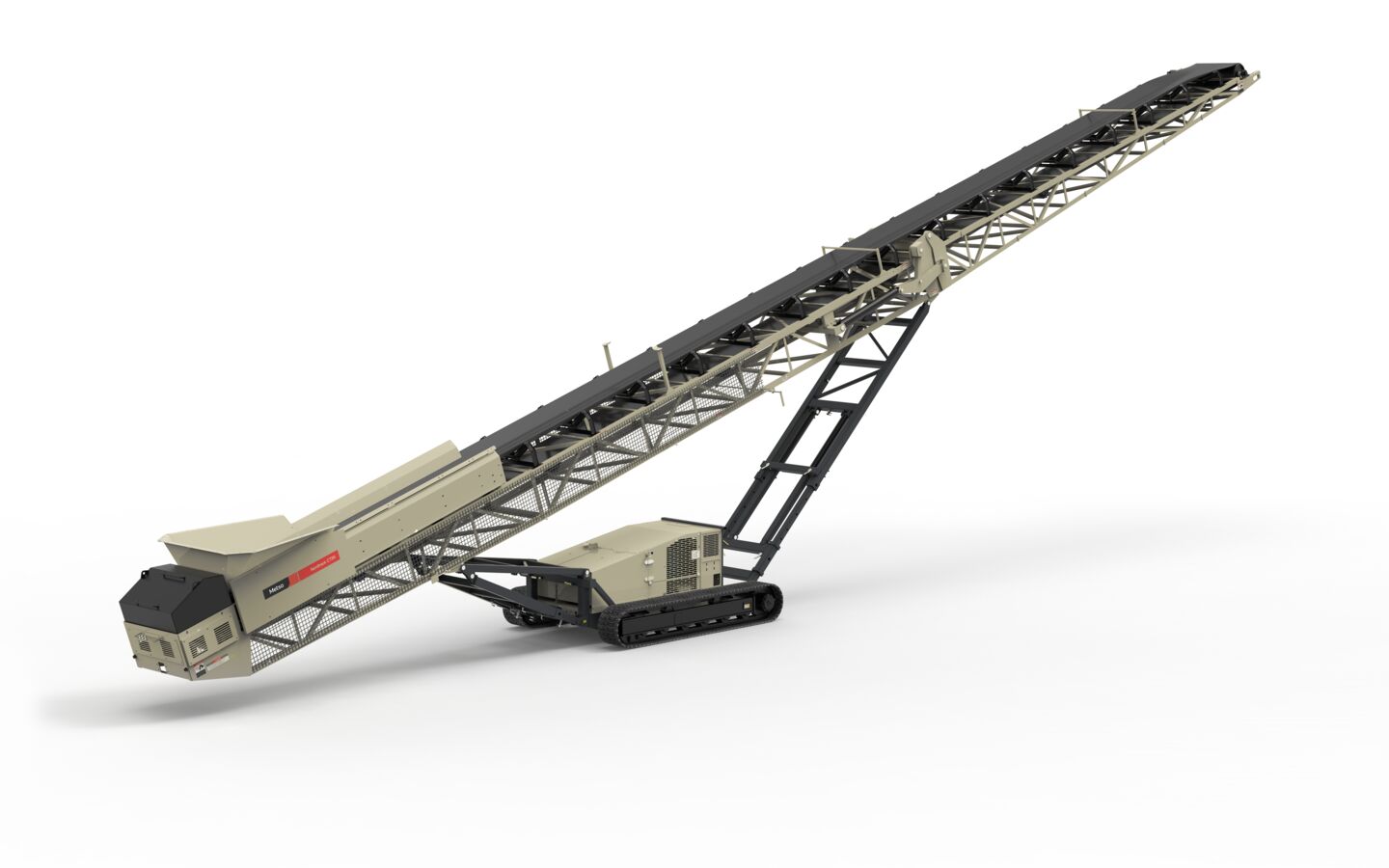

Nordtrack™ track-mounted conveyors makes it easy to get your operations up and running on time and on budget. They are ideal when you work in short-term contracting jobs or are just starting your own operations.
All Nordtrack™ conveyors are supported by the global sales and service network.
Check the video
Less wheel loader running with Nordtrack™ CT24 stacking conveyor
Nordtrack™ CT Series mobile conveyors technical specifications
Model | Hopper size | Belt width | Belt lenght | Stockpile height |
|---|---|---|---|---|
| Nordtrack™ CT20 | 3,0 m³ (3,9 yd³) | 1,000 mm (40”) | 19,400 mm (63' 5") | 8,4 m (27' 8") |
| Nordtrack ™ CT24 | 3,0 m³ (3,9 yd³) | 1,000 mm (40”) | 23,500 mm (77' 3") | 9,7 m (31' 10") |
| Nordtrack™ CT85 | 1.5 m³ (2.0 yd³) | 900 mm (36”) | 24,400 mm (80') | 10,000 mm (31’ - 10”) |
| Nordtrack™ CT85R | 1.5 m³ (2.0 yd³) | 900 mm (36”) | 24,400 mm (80') | 10,000 mm (31’ - 10”) |
| Nordtrack™ CT100 | 1.5 m³ (2.0 yd³) | 900 mm (36”) | 30,500 mm (100') | 12,400 mm (40’ - 7”) |
| Nordtrack™ CT100R | 1.5 m³ (2.0 yd³) | 900 mm (36”) | 30,500 mm (100') | 12,400 mm (40’ - 7”) |
Nordtrack™ CT Series models
