Metso Full portfolio Nordtrack™ mobile screens Nordtrack™ S4.12 mobile screen
Nordtrack™ S4.12 mobile screen is a big, heavy-duty screener equipped with 3 decks. It is ideal for efficient high-volume screening of sand and gravel, aggregates, or organic materials such as topsoil.

Dependable, heavy duty design

High volume screening

Easy to move and to transport

Easy to use and maintain

Dependable screening with 3 decks

Nordtrack™ S4.12 mobile screen has 3 decks for effective high volume screening. With the extra remote controller, you can control the feeder functionalities from, for example, the excavator cabin.

Applications

  • Sand and gravel
  • Organic materials screening
  • Aggregate screening

Key features

  • Large screenbox with 3 decks
  • Efficient feeding
  • Simple to set up and service
  • Efficient dust suppression (option)
  • Powerful engine
  • Easy to move on-site

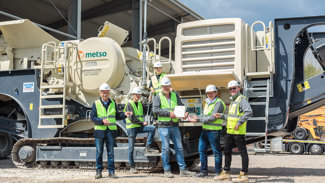

Metso screening expert at a customer site.
Metso screening expert at a customer site.
Smooth and carefree operations

With strategically located distribution centers worldwide, Metso can ensure that parts are available when needed.

OEM parts secure safe and reliable operations, while ensuring the reliability and productivity of your Nordtrack™ screening equipment.

One of the keys to maximizing throughput and reducing operating costs is to ensure that machine uptime is high. A longer part lifetime directly reduces the cost per tonne, and our global team of experts ensures professional technical support for your machine.

By using the right parts, understanding how the machine works, and carrying out preventive and predictive maintenance with our help, you will get the most out of your machine.

Nordtrack™ Virtual Liveroom
3D Product demos

Nordtrack™ S4.12 mobile screen's technical specifications

Screen sizeTop deck 6,710 x 1,830 mm (22’ x 6’), middle deck  6,710 x 1,830 mm (22’ x 6’), bottom deck 6,100 x 1,830 mm (20’ x 6’)
Decks3
Feed hopper4,500 mm wide feed hopper (10,0 m³ / 13,1 yd³)
Engine

Tier 3 LRC: CAT® C7.1 165 kW (225 hp) / Stage IIIB:
CAT® C7.1 CSE 209 kW (281 hp) / Tier 4F / Stage V:
CAT® C7.1 165 kW (225 hp)

Weight42,400 kg (90,600 lbs)
Transport width3,700 mm (11' 10")
Transport height3,600 mm (11' 10")
Transport length19,600 mm (64' 15")
Included in standard configurationTipping grid, Three-way platform , Hydraulic lifting conveyor raising, Hydraulic fines conveyor lowering, Remote controller for tracks, Working lights, Hydraulic PTO
OptionsWater spraying system with pump, Extra remote controller for feeder functions, Two-deck vibrating grid (on request)

*) The technical details provided are based on the basic configuration and should not be used for obtaining transport permits.
